Характеристики

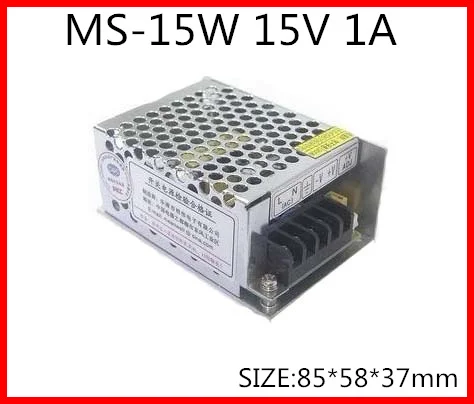

15W 15V 1A Small Single Output Switching power supply for LED Strip light AC-DC | Обустройство дома
История изменения цены
*Текущая стоимость 642,68 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-22-2026 | 764.26 руб. | 802.80 руб. | 783 руб. |
| Feb-22-2026 | 758.85 руб. | 796.48 руб. | 777 руб. |
| Jan-22-2026 | 636.6 руб. | 668.39 руб. | 652 руб. |
| Dec-22-2025 | 745.73 руб. | 782.50 руб. | 763.5 руб. |
| Nov-22-2025 | 648.69 руб. | 680.46 руб. | 664 руб. |
| Oct-22-2025 | 732.42 руб. | 769.19 руб. | 750.5 руб. |
| Sep-22-2025 | 725.66 руб. | 761.19 руб. | 743 руб. |
| Aug-22-2025 | 719.80 руб. | 755.70 руб. | 737 руб. |
| Jul-22-2025 | 713.47 руб. | 749.4 руб. | 731 руб. |
Описание товара
MS-15W series compact single switching power supply
Features:Universal AC input range
Small volume,low weight,high efficiency
Protections:short circuit/over load
cooling by free air convection
LED indicator for power on
100% full load burn-in test
1 Years warranty
| Model |
MS-15-5 |
MS-15-12 |
MS-15-15 |
MS-15-24 |
|
|
output |
DC voltage |
5V |
12V |
15V |
24V |
| Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
|
| Rated current |
3A |
1.3A |
1A |
0.7A |
|
| Current range |
0~3A |
0~1.3A |
0~1A |
0~0.7A |
|
| Rated power |
15W |
15.6W |
15W |
16.8W |
|
| Ripple&noise |
80mvp-p |
120mvp-p |
120mvp-p |
150mvp-p |
|
| DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
|
|
input |
Voltage range |
90~264VAC,235~373VDC |
|||
| frequency |
47~63HZ |
||||
| AC current |
0.25A/230VAC |
||||
| efficiency |
76% |
78% |
78% |
80% |
|
| Inrush current |
Cold start current 30A/230VAC |
||||
| Leakage current |
< 0.5mA/240VAC |
||||
|
protection |
overload |
Rated output power115%~150% start over load protection |
|||
| protection type :part layer type current limit ,auto-recovery after fault condition is removed |
|||||
| ----- |
----- |
||||
| ----- |
|||||
| environment |
Working temp,humidity |
-10~+60,20%~90%RH |
|||
| Storage temp,humidity |
-20~+85,10%~95%RH non-condensing |
||||
| Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
||||
| safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||
| Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC |
||||
| Fit standard |
Safety standard |
Compliance toUL1012 |
|||
| EMC standard |
Compliance to EN55022,CLASSA |
||||
| others |
Dimension |
84*58*38mm(L*W*H) |
|||
| Weight/packing |
0.15kg/80pcs/13kg/0.024m⊃3;/0.87CUFT |
||||
| note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
||||
