RTU5019 Dual-band GSM SMS Remote Controller Switches Alarm System Temperature controller With Available Android App

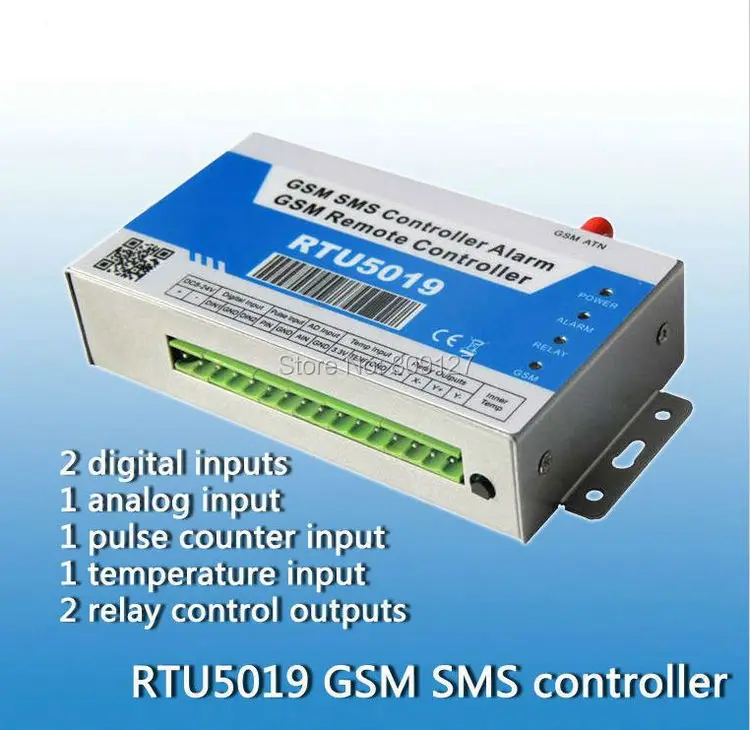

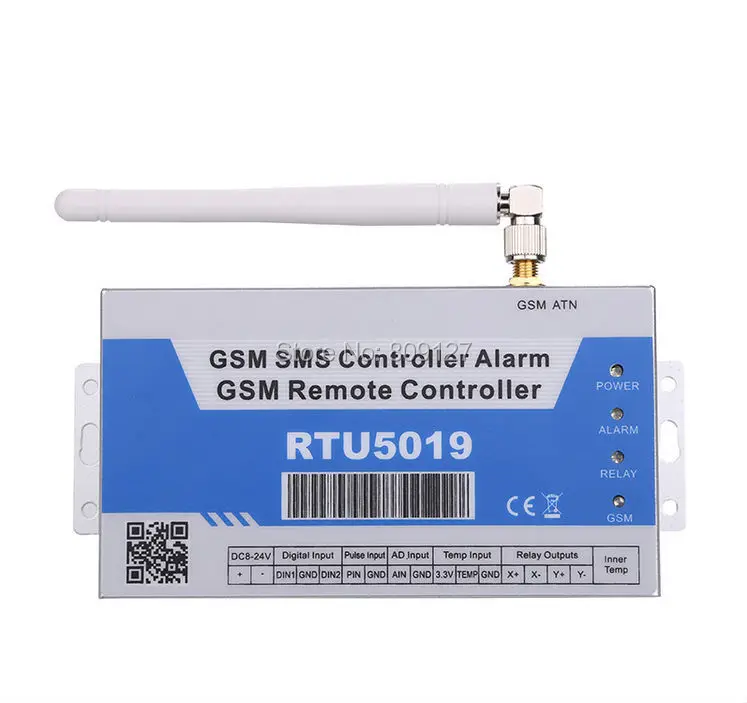

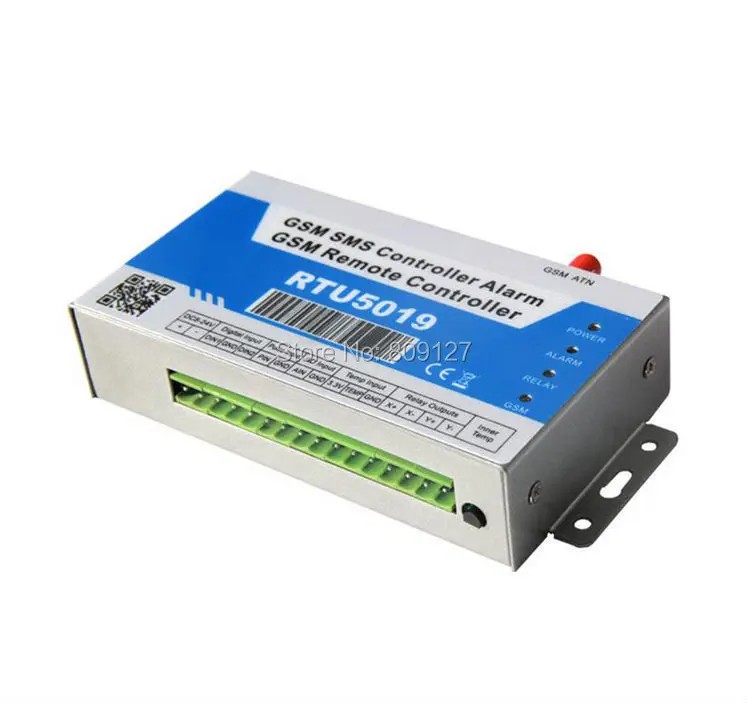

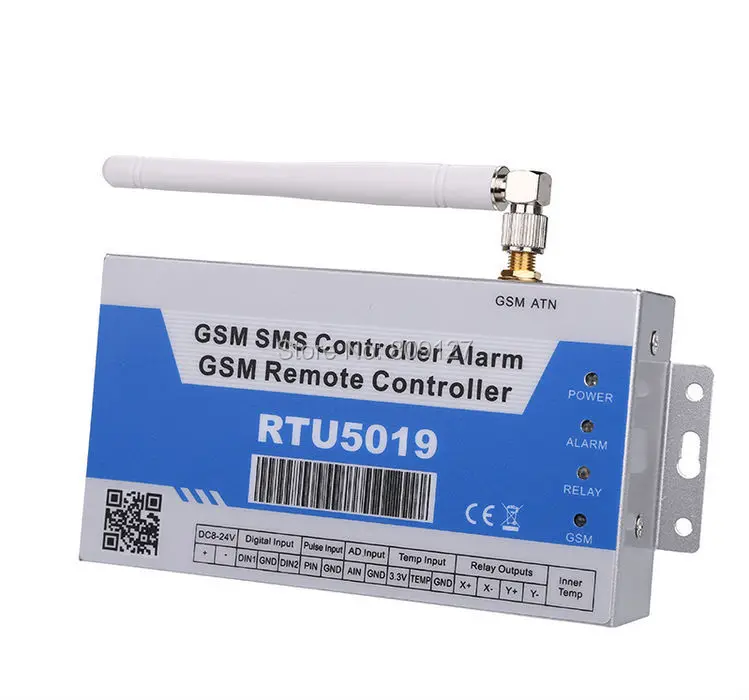

Model: RTU 5019 (2DIN,2Dout,1PIN,1AIN,1Temp)
Name: GSM SMS Controller (GSM RTU)
Remote switching machines with a FREE call from your mobile phone!
Remote inquiry the Unit status with a FREE Call from your mobile phone!
Inquiry the Data Acquisition Value with a FREE Call from your mobile phone!
Ultra-Low Cost & Multifunctional & Programmable GSM RTU
The RTU5019 can meet your requirements!

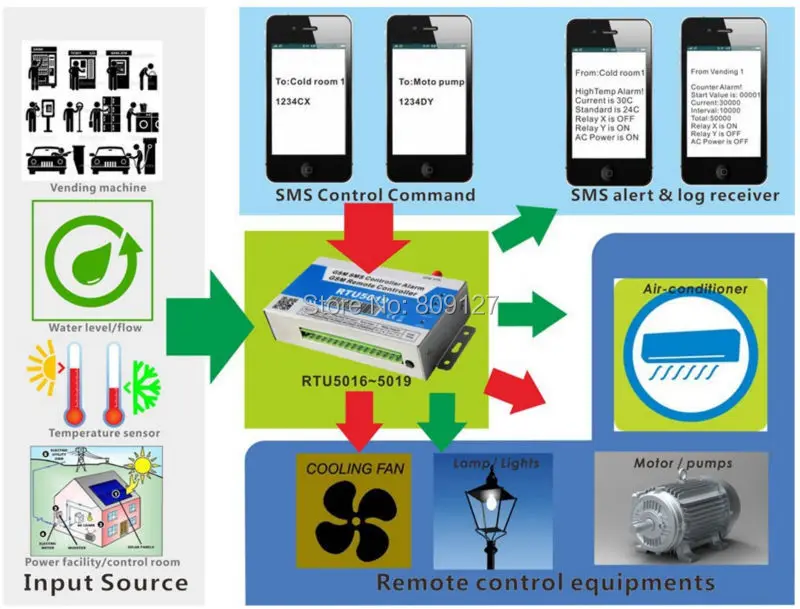

The GSM SMS Controller RTU5019 is a very simple programmable I/O ports (2DIN, 2DOUT, 1 PIN, 1 AIN, 1Temp. Input) and cost effective GSM RTU which can be used for data acquisition, remote switching machine, temperature monitoring, Pulse Counter, automation system and other applications.
Just dial from Authorized User number then 1 or 2 relay output will be switched ON/OFF. There are no communication costs, the GSM SMS Controller Alarm rejects the call from authorized number (Call-ID) then carries out the turn ON/OFF action.
Mainly Features of the GSM SMS Power Alarm:
1.Can be operated from anywhere, no distance limitation, Android App and iOS App iKeypad for quickly operation;

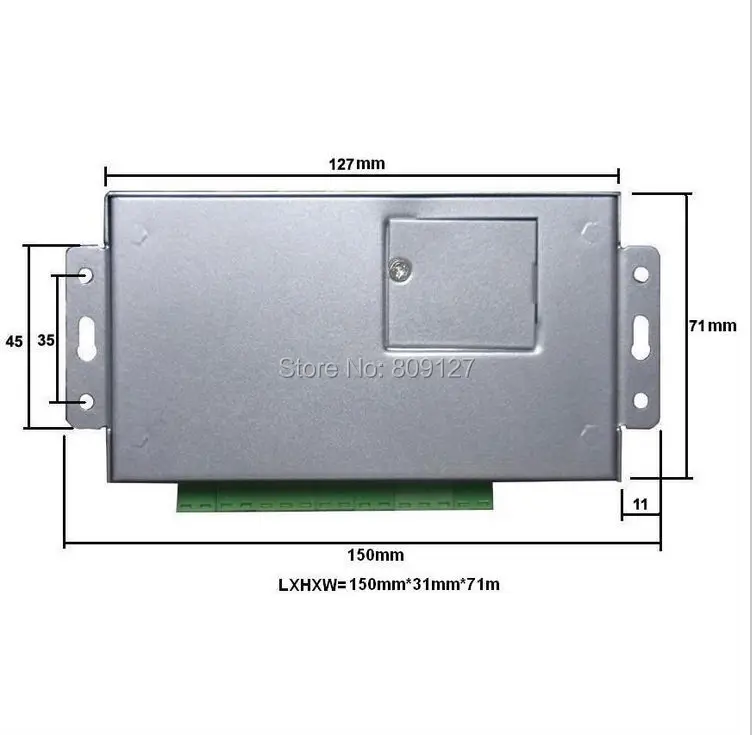

2.Din Rail 35mm installation;
3.No call charges. the GSM SMS Controller rejects the call from authorized number then carry out the programmable actions on the first"ring";
4.Multiple applications. (gates, barriers, temperature, pulse counter, humidity, machines, automation systems);
5.Secure-Using caller ID and password for identification, unknown callers are ignored;
6.Programmable by SMS Commands with password protection;
7.External AC Power monitoring, AC On/OFF will send SMS to authorized phone numbers;
8.Timer Report--Can setup every x hours automatically send its status/Value to the authorized numbers;
9.Rechargeable Backup Battery inside can last 18hours;
10.Upto 6 authorized phone numbers, each number can be used to receive call or SMS or both of call and SMS while alarm occurrence;
11.Authorized phone numbers can be used for dial to switch ON/OFF one or both of the relay outputs, inquiry status, armed or disarmed;
12.Two Digital inputs (Dry Contact, NC/NO) for door sensor, motion sensors or other sensors, the input activated can active one or both of the relay outputs and send programmable SMS and dial to authorized phone numbers;
13.Two digital outputs (dry contact, NO) with relay rating 10A/240VAC for connecting the switch of the air conditioner or machines, the outputs can setup as always ON, Pulse output, by SMS, authorized phone number dial in, and alarm events;
14.One Pulse Counter input, can setup start value, interval alert value, interval time to alert, total value alarm, when total alarm occurrence can active one or both of the relay outputs and send programmable SMS to authorized phone numbers;
15.One Analog input, 0-5V or 0-20mA or 4--20mA, 10bits Direct Current inputs, can setup interval time to alarm, interval value to alarm, ultra-high, high, low, ultra-low alarm, ensure time, when alarm can active one or both of the relay outputs and send programmable SMS to authorized phone numbers;
16.One Temperature S, ensor input, 12bits, measures temperatures from -55 C to +125 C (-67 F to +257 F), 0.5 C accuracy from -10 C to +85 C, can setup interval time, interval value, ultra-high, high, low, ultra-low temperature alarm can active one or both of the relay outputs and send programmable SMS to authorized phone numbers;
17.Based on GSM Network, applied to many applications.
