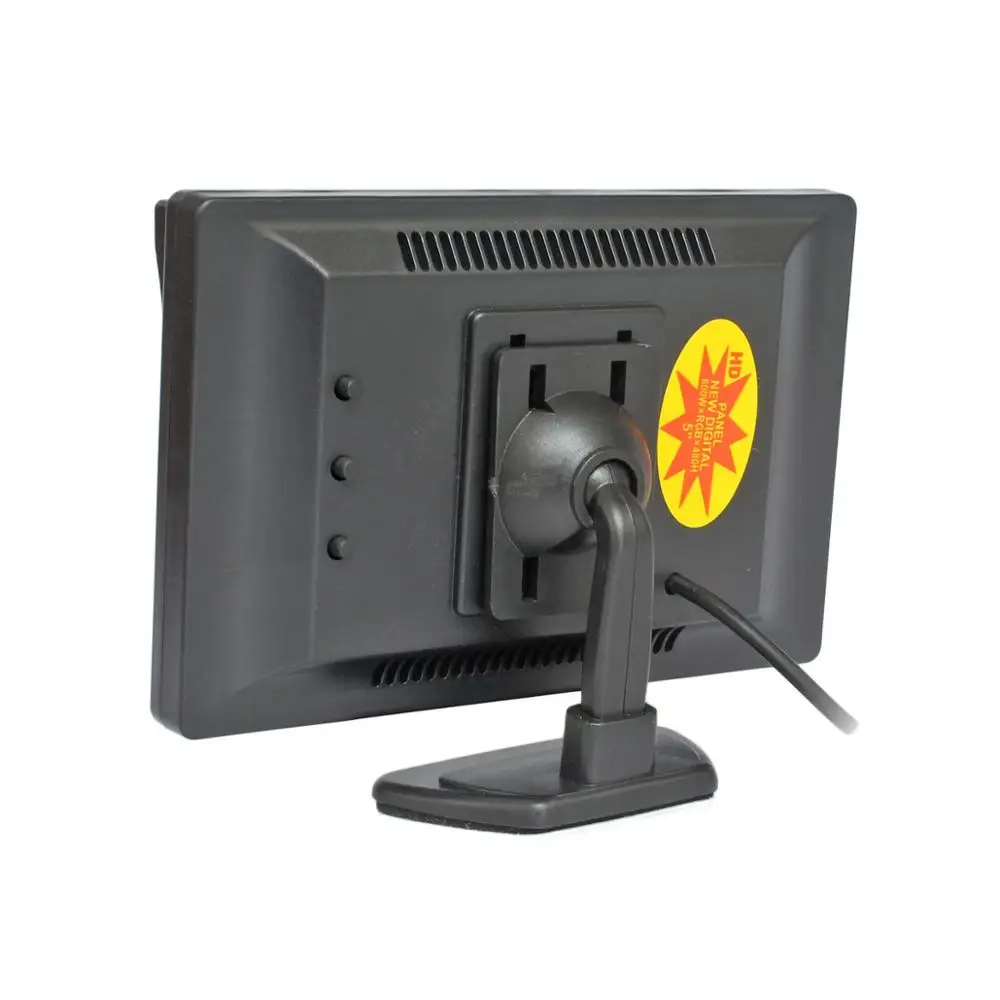

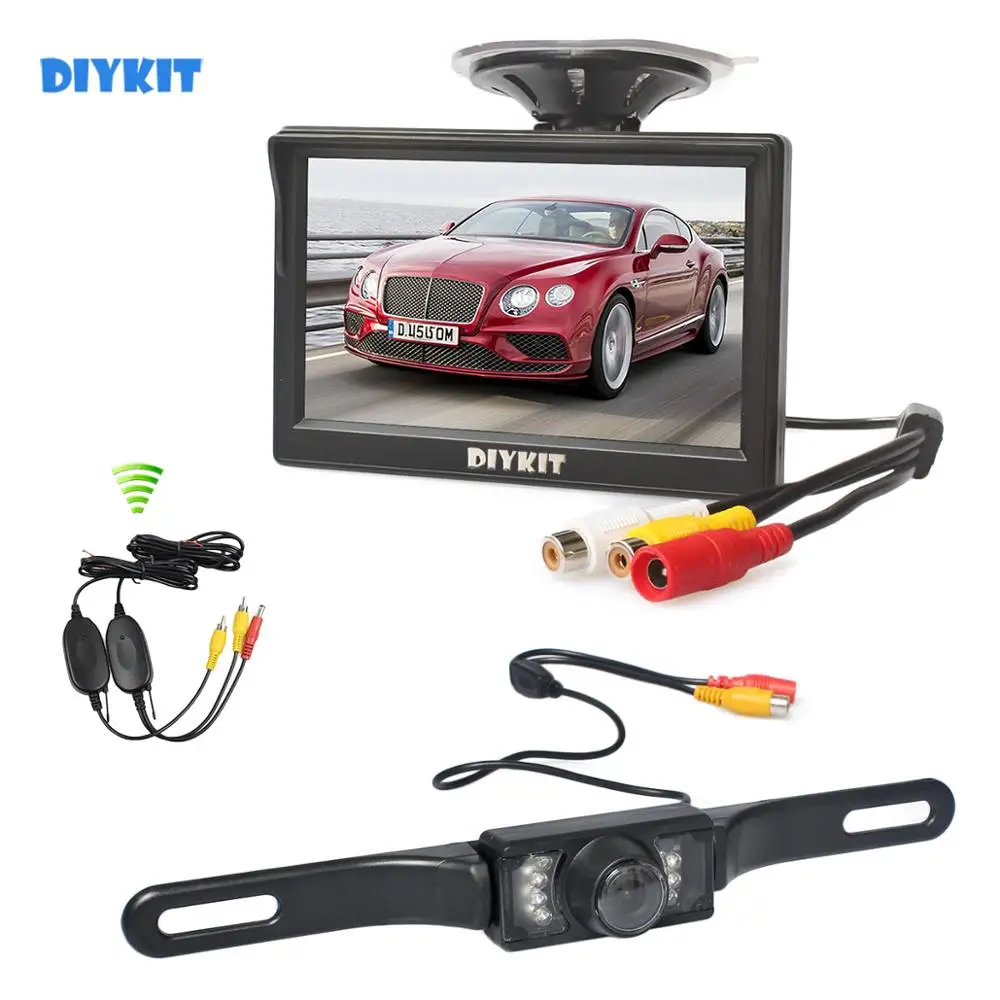

5" Color TFT LCD Car Monitor with 2 Video Input + Suction Cup & Bracket

Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.

Camera：

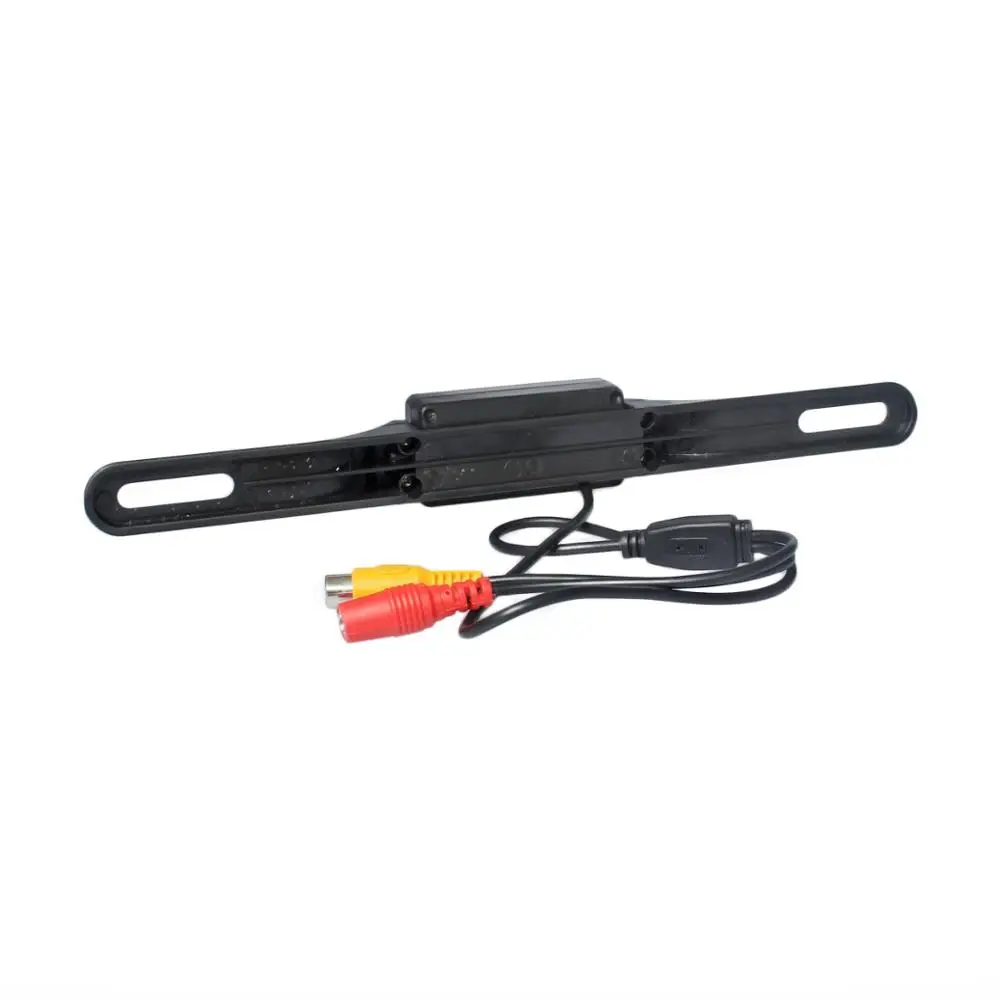

This Color CMOS Car Rear view Camera is a new and never used high quality IR Night color camera. With High-definition wide view angles and good waterproof functions, its perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.

• High-definition and 120 degree wide view angles.
• With good waterproof function.
• Applicable to variety of Vehicles: car, truck, RV, mini-van etc.
• Solve the issue of bad car rear view effect, can help reduce incidents and accident.
• Support IR Night color CMOS image.
• With its elegant and contemporary design, this camera is very popular.

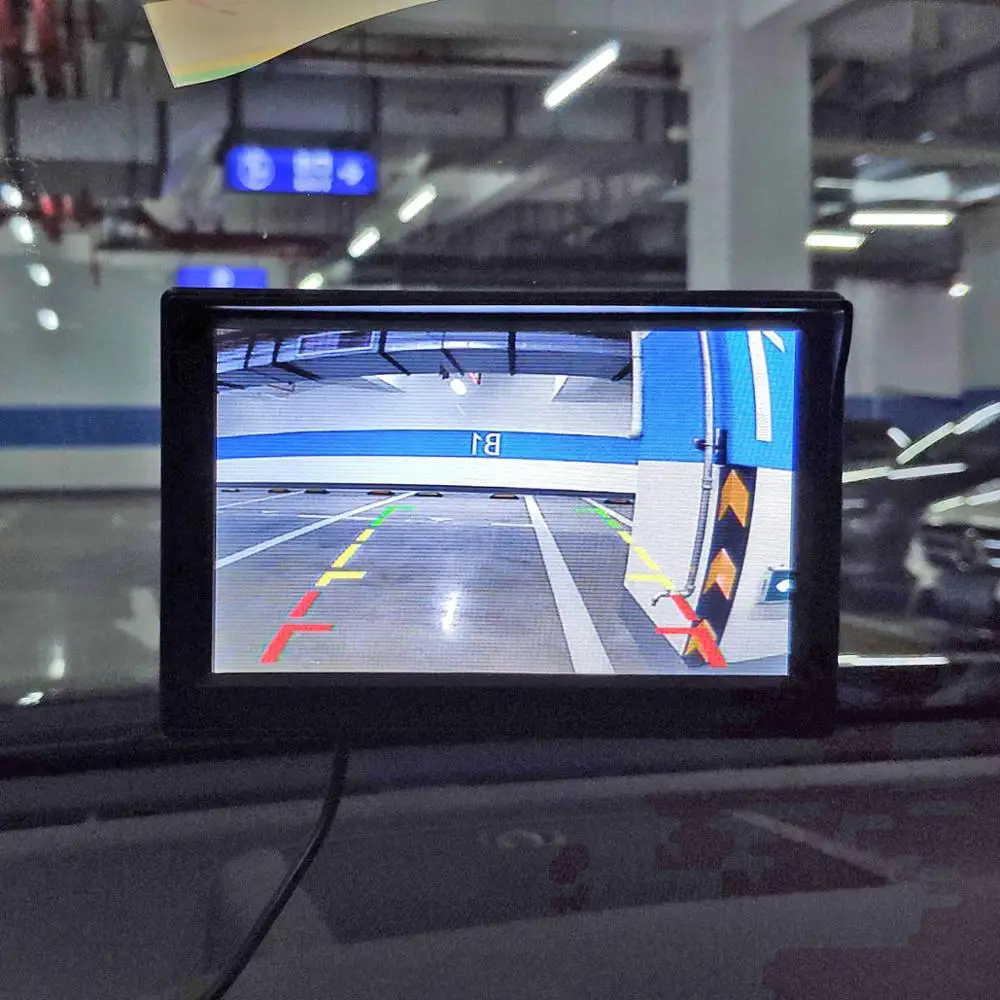

• When the car back up, the Image will show Reverse leading line.

2.4G Wireless transmission & receriver

Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

• Range of the transmission: 8m-12m,
• The shorter the distance between camera and monitor, the better transmission signal,
• The image can be seen clearly without any obstacles.

Enter the "R". Car Mirror Monitor display automatically rear view image.

Enter the "N" or "D". Car Monitor don't display image or display AUX Video image.

​

With this item, you can park your car easily, speedily and safely.It will be a lot safer for beginners or even professional drivers.As you never know when an accident will occur.You can only prepare for the worse.

Specifications:

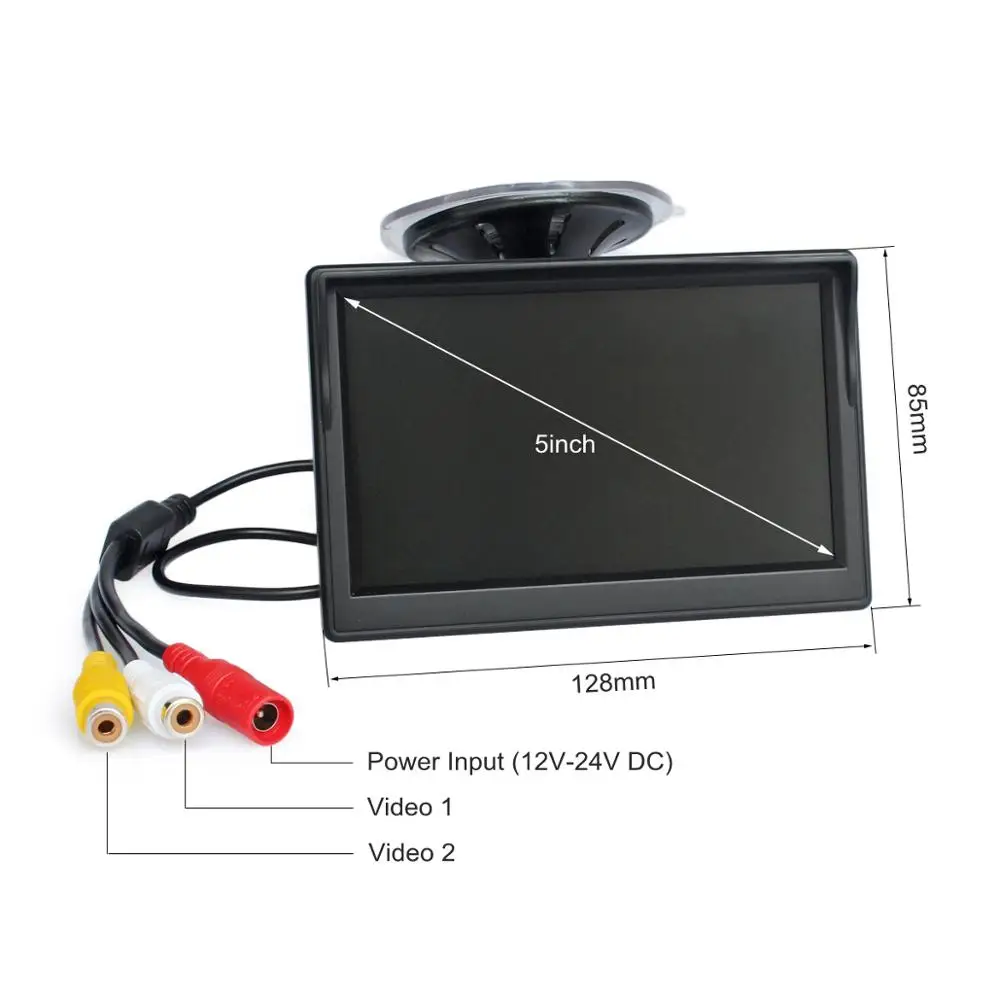

Monitor :

• Screen size: 5 inches
• Display mode: 16 : 9
• System: PAL / NTSC (Auto)
• Definition: 800(H) x 480(V)
• Nominal voltage: 12V 10%
• Power consumption: 3W
• Way of control: Monitor button
• Vedio input: Two way video input
• Operation temperature: -20°c-60°c
• Storage temperature: -40°c-60°c
• Brightness: 250cd/m⊃2;
• Contrast: 300:1

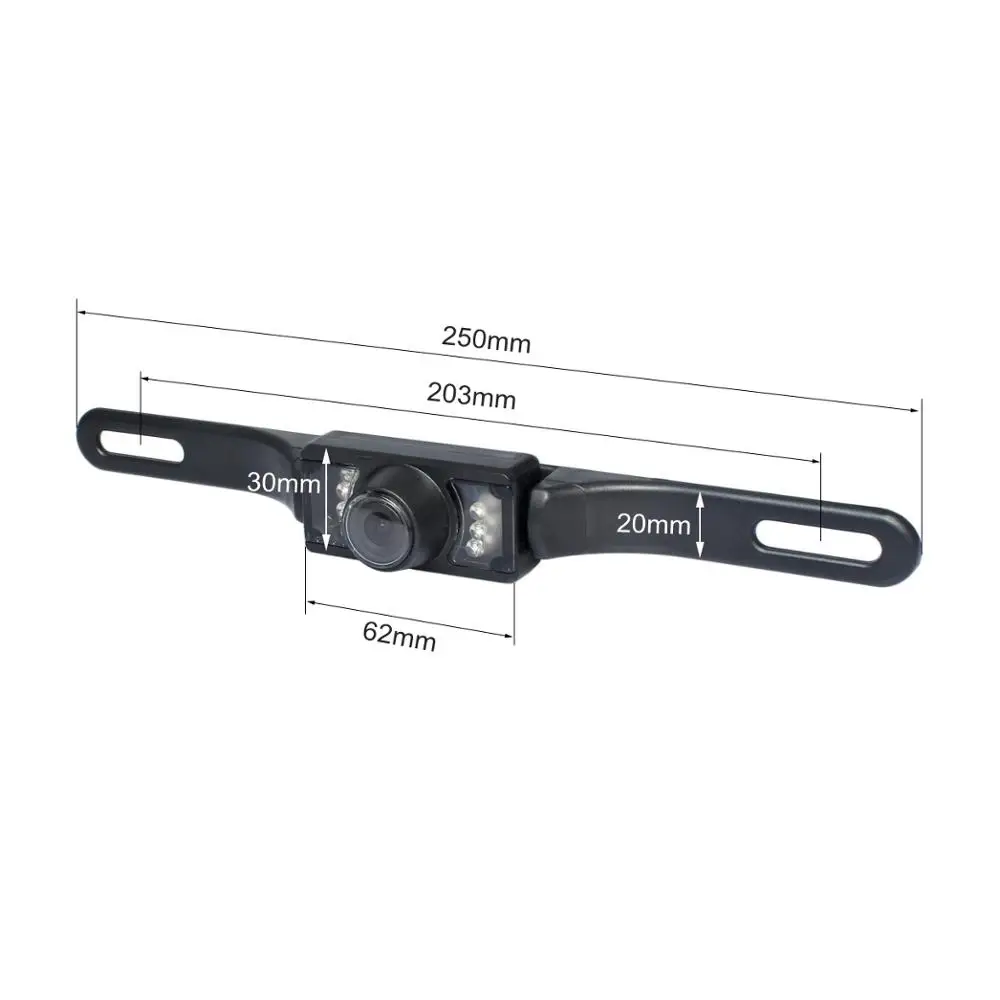

Camera:

• Camera image type: High performance color image
• Horizontal resolution: 480TV Lines
• Usable illumination: 0.05Lux
• Free viewing angle: 120º
• Waterproof: IP67
• Shockproof: 10G
• Video output: 1.0Vp-p75
• Power supply: DC 12V
• Video system: NTSC / PAL

Packing list:
