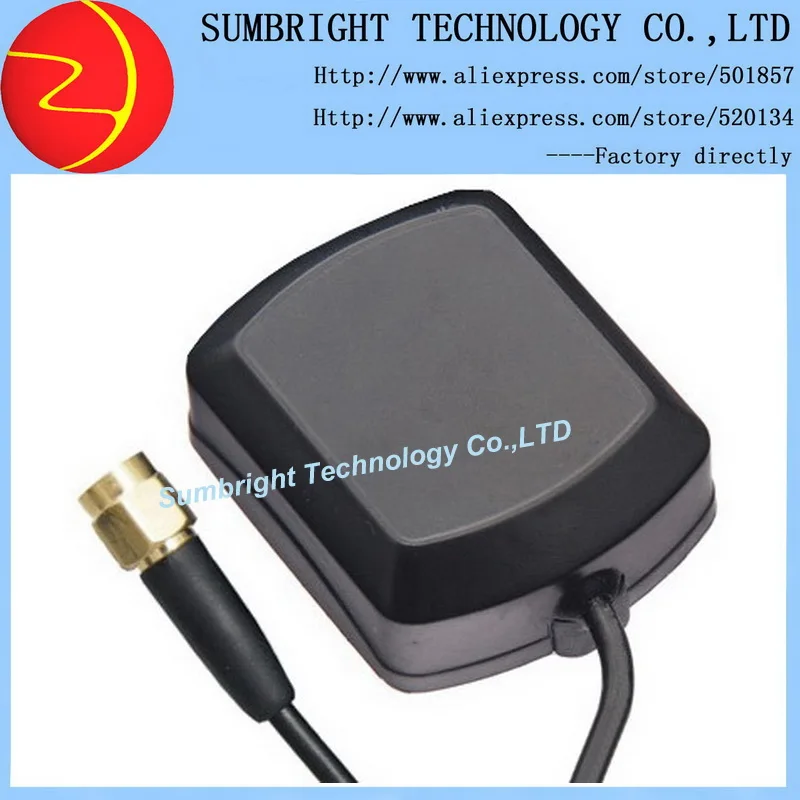

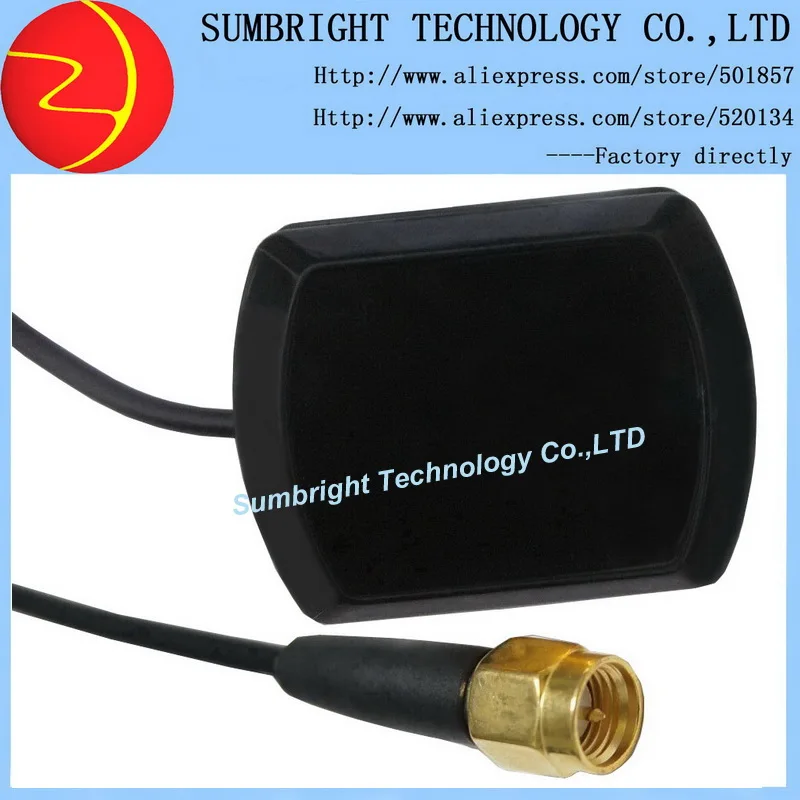

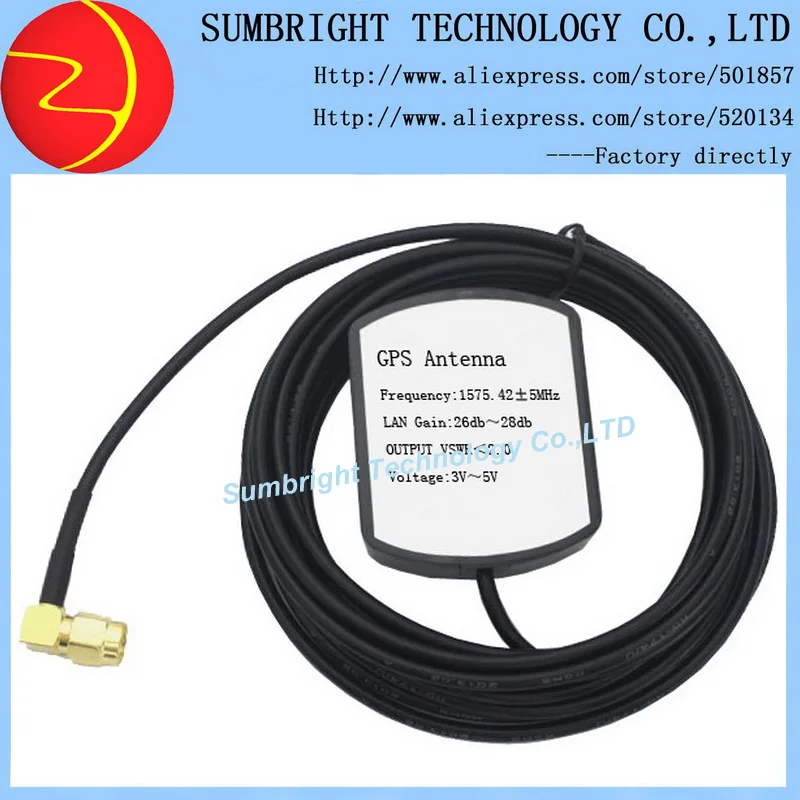

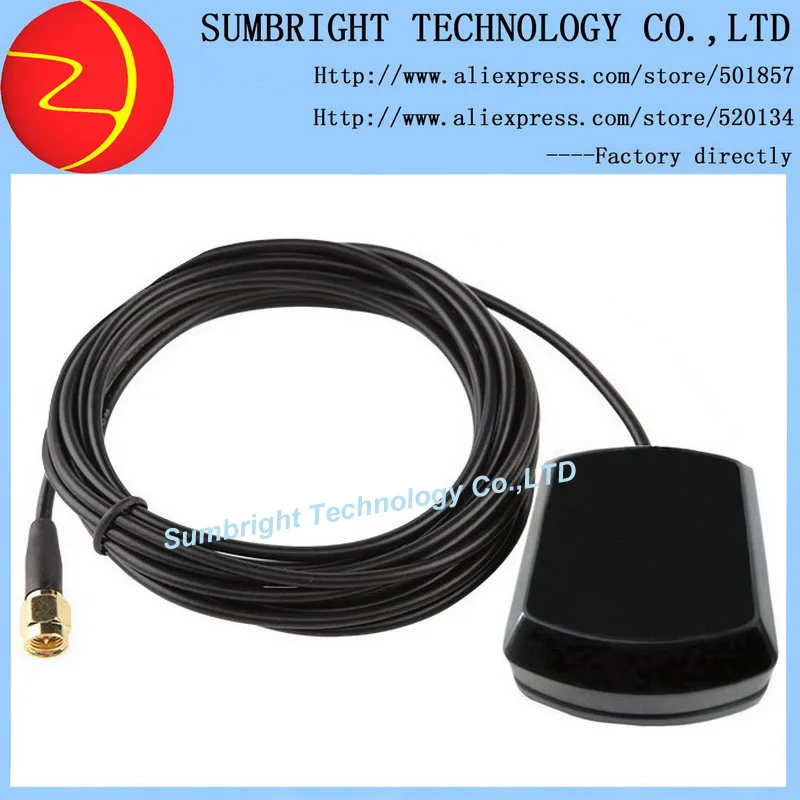

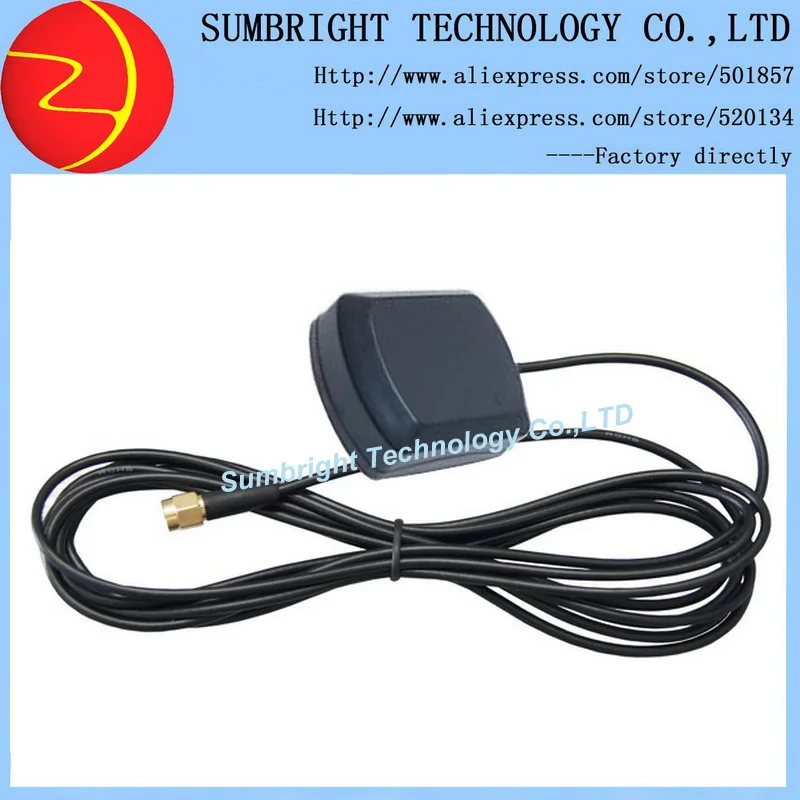

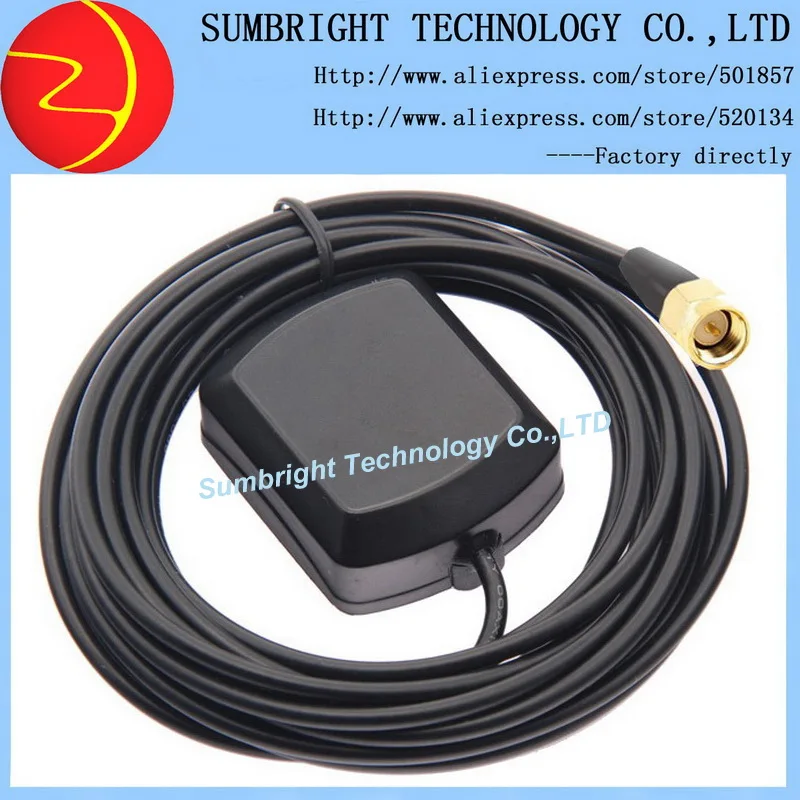

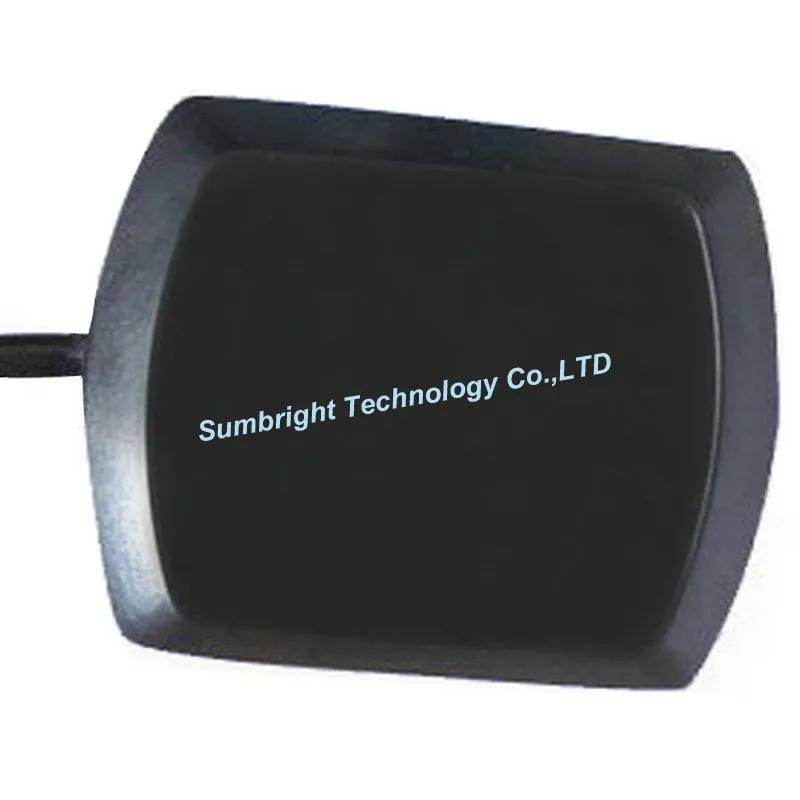

SB-CA119-SMA-3M GPS active patch antenna

A:Characteristic:

(a).Dielectric antenna

Center Frequency:1575.42+/-3MHz;

V. S. W. R.:1.5:1;

Band Width:+/-5MHz;

Impendence:50ohm;

Peak Gain:>3dBic based on 7×7cm ground plane;

Gain Coverage:>-4dBic at -90degree< 0+90degree (over 75% Volume);

Polarization:RHCP;

(b).LNA/Filter

LNA Gain(without cable):28+/-3dB;

Noise Figure:1.5dB Typical;

Filter Out Band Attenuation:(f0 =1575.42MHz);

7dB Min f0+/-20MHz

20dB Min f0+/-50MHz

30dB Min f0+/-100MHz

V. S. W. R.:lower than 2.0;

DC Voltage:3V,5V,3V to 5V or other;

DC current:5mA,10mA or Max;

(c).Mechanical

Weight:90gram;

Size49.4*39.3*14.9mm:

Cable:RG174/3M;

Connector:SMA straight;

Mounting:Sticking;

Housing:Black;

Package:PE bag;

Certificate:FCC, SGS, CE;

(d).Environmental

Working Temp:-40degreeC~+85degreeC;

Storage Temp:-40degreeC~ +100degreeC;

Relative Humidity:95% non-condensing;

Weatherproof:IP67 waterproof;

Buyer tips:

Payment:

We accept T/T, Western union, Alipay(ESCROW), you can choose your convenient payment way;

Shipment:

1.After you pay for us successfully, we commence on sending out the goods to you;

2.Estimated Time of Arrival:

By Express(DHL/FedEx/EMS/TNT/UPS etc.):3-8 working days;

By Air mail:15-25 working days(Some remote countries take longer time);

Note: Because of the particularity of the product, we choose DHL express as the default shipping way

(If there's another more quick and secure way, we'll use it instead).

For those countries that DHL express can't arrive, we'll try to get another express way instead;

3.We'll mark"Gift" on the package with lower commercial value to minimize or avoid

the import taxes for you;

Guarantee:

1.This item has been checked "in good condition" and packed well before dispatch;

2.If this item is defective when you just get it, you can exchage a new one in 7 days

(It should include all original undamaged items);

3.This item has one year warranty for repairing. For the first 3 months, we'll pay one way

shipping cost (from China to your location). After 3 months, you need to pay all the shipping cost;

4.The item is from the factory directly, there is no middleman, no sudden huge profits, so we

can provide you both high quality and low unit price;

5.Any question, please let us know, we'll try our best to serve you;

Feedback:

Your feedback is very important to our business's development.

We sincerely invite you to leave positive feedback for us if you are satisfied with our prodcuts and service.

Thank you very much!
