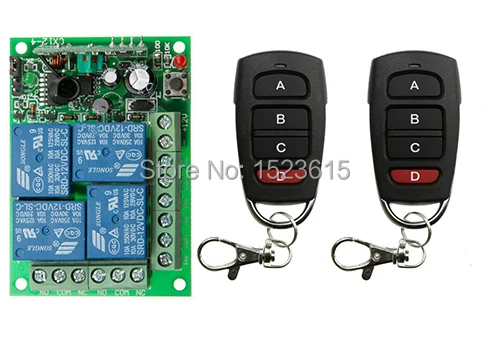

NEW DC12V 10A 4CH Radio Controller RF Wireless Relay Remote Control Switch 315 MHZ 433 teleswitch 2 Transmitter +1 Receiver |

NEW DC12V 10A 4CH Radio Controller RF Wireless Relay Remote Control Switch 315 MHZ 433 teleswitch 2 Transmitter +1 Receiver |

Feature:
* Wireless control, easy to install
* Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC220V,AC85V-260V OR DC12V..
*You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
*This switch can learn different coding remote controls (such as 2262,1527 ect.)
*One/several transmitters can control one/several receivers simultaneously.
*If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won’t affect each other.
* Operating  Frequency: 315MHz / 433MHz
*The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

The 12 v 4 road 10 a RF wireless remote control system

 This is a learning code (receiver), wireless remote control switch output mode/working mode can be changed, as long as you like, it is easy to match the transducer.
AK - RK04S - 12 4 relay wireless remote control switch 4 road.It can make equipment forward or backward. On/off and come true.Small volume, stable performance and reliable, high sensibility,
 Output working way:
1. Self-lock ---connect the JP1 with the cutting out cap.
2. Jog---the cutting-out cap is non-occupation , JP1 and JP2 do not connect either.
3.inter-lock-/Latched --- Connect the Jp2 with the Cutting out cap,
4. 2 Channel is self-lock and 2 channel is Jog ,connect the
Jp1 and Jp2 with the cutting-out cap .
Jog/Momentary---- press one button is ON . loosen your
finger on the same button is OFF .(need one channel switch
 and one buttons remote control )
Self -lock/Toggle ----- press one button for one time is
ON .press the same button again is OFF .need one channel
switch and one buttons remote control
Inter-lock/Latched -------press one button is ON , press another button is OFF . (need one channel switch and 2 buttons remote control.

  Please notice that .
here is the 4CH receiver and 4 buttons transmitter, you just can choose the self-lock /Toggle or jog/Momentary
or self-lock/Toggle and jog/Momentary together.

Learning and remove method
1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully .

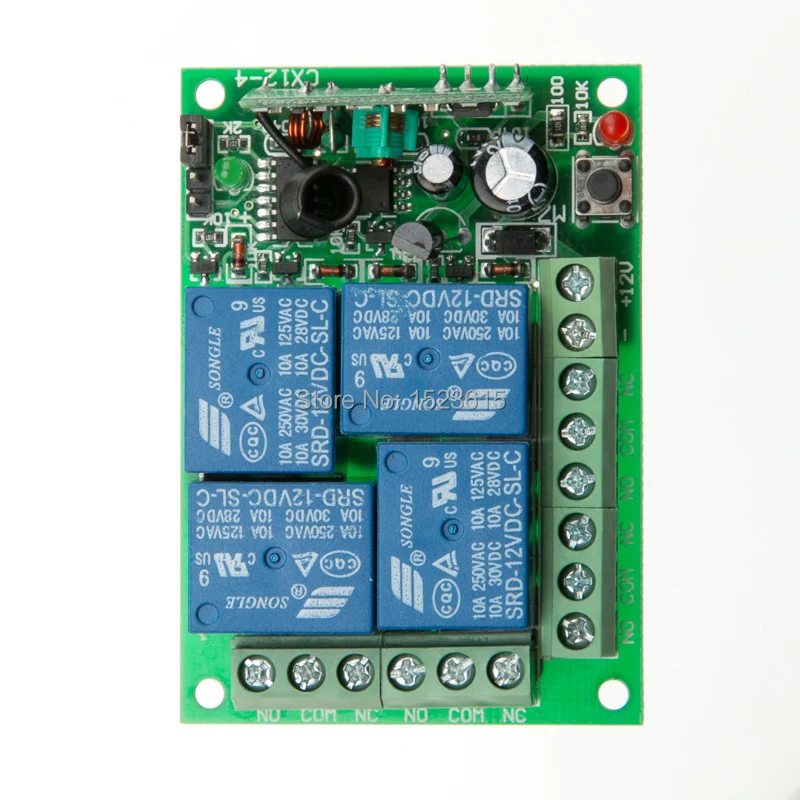

Technique Data:
1.working voltage :DC12V
2. quiescent condition :less than 6mA
3.working temperature :-40'c+80'c
4.receiver sensitivity : more than -105dBm
5.working frequency :315/433MHz can be choose, if is has been make work together you do not have to care about the frequency.
6.output voltage:DC and AC is optional
7.output current : less than 3A
8.max load current:10A
9.70mm*50mm*18mm

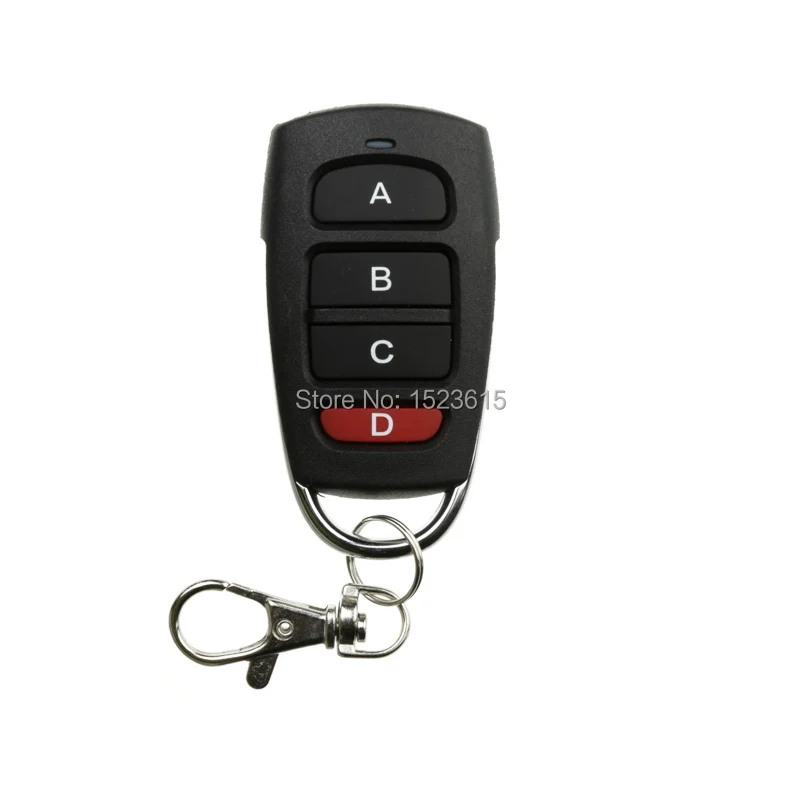

 remote control transmitter :
Detailed Product Description
1.Wireless remote control
2.Working voltage :DC12V
3.Operating Current 30MA
4.Operating frequency :315/433MHz
3000 meters four button remote control
Working voltage :DC12V
Operating Current 30MA
Operating frequency :315/433MHz
Transmitting distance;500-3000 meters
Encoding Type :fixed code, learning, rolling code(hopping code)
Encoding way: fixed code by soldering.

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency
pacote inclued:
 1 x Receiver
2x Transmitter
