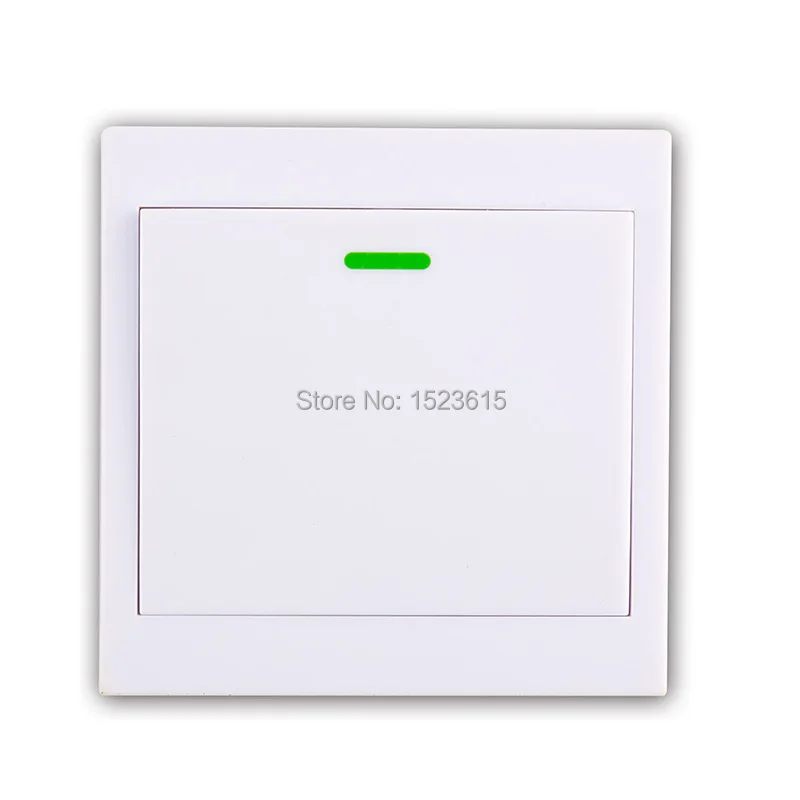

Новый цифровой беспроводной выключатель на радиоуправлении с приемником AC220V и передатчиком на стену, реле на 315 МГц.

Новый цифровой беспроводной выключатель на радиоуправлении с приемником AC220V и передатчиком стену реле 315 МГц.

Brand NamexuanlongyuanModel NumberXHYA-941Item TypeSwitchesFeaturesLearning codeCertificationCCCWarranty1 yearSwitch TypeRemote ControlRemote Distance10-50mMeasurement unitpiece/piecesSold insell_by_pieceEach pack1Package weight0.5Package size - length (cm)12Package size - width (cm)10Package size - height (cm)8channel 1CHworking voltage AC220Vworking frequency 315MHzCoding type Learning codecurrent 10APCB size 35*32*20mm987,36 ₽-20%987,36 ₽-20%790,24 ₽790,24 ₽Add to CartBuy now790,24 ₽

Delivery to Moskva g

Free Return return for any reason within 15 days

Delivery to a Post office

Self-pickup

Description

The company receives the remote control board, suitable for anti-theft alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment and so on.Remote control switch module relay contact output independently, is very suitable for direct control of all kinds of load;Products adopt wireless fixed code technology, omnidirectional, noninterference switch.Remote control switch circuit component materials buyers can contrast.

Please note: this mini remote control stability is extremely strong, welcome to order, thank you

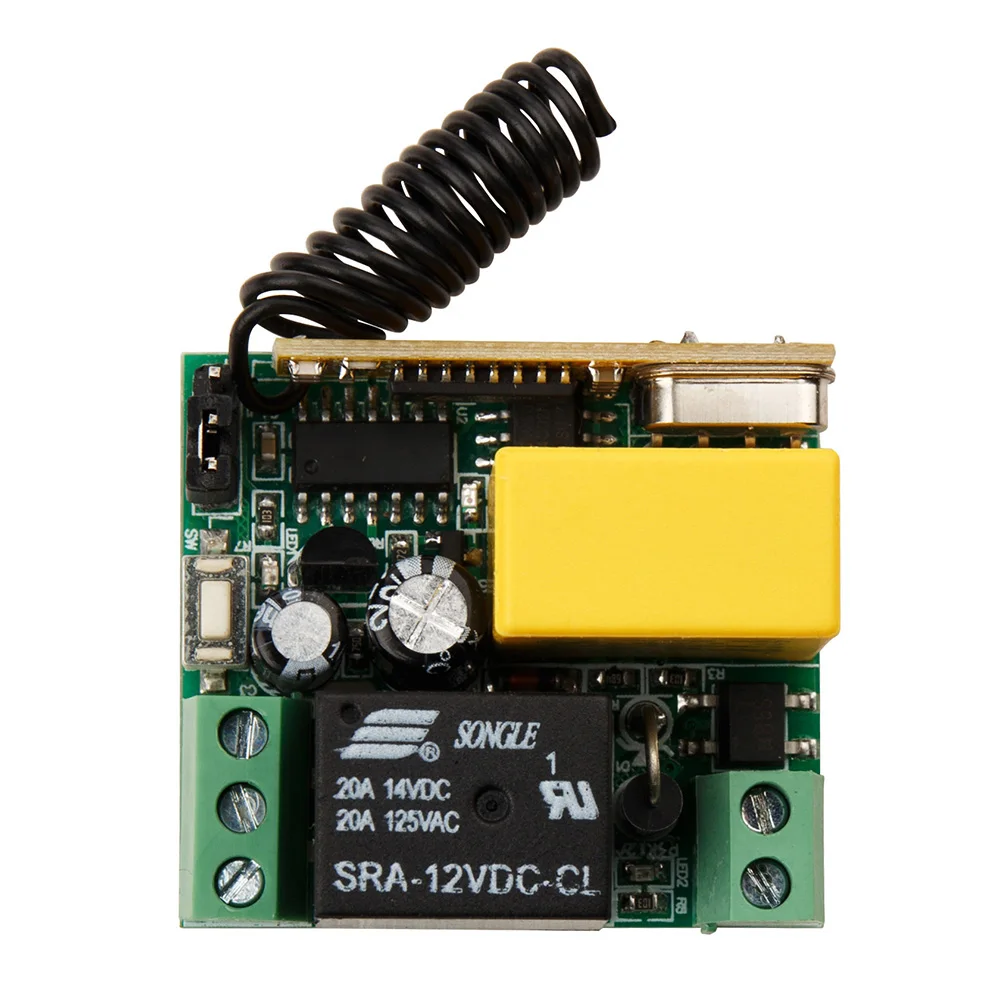

220V 10A 1CH wireless remote control system .
Working Voltage: AC220V
Working Frequency : 315MHZ
Receiver sensitivity: : -105Db
Working temperature : -10'C - +80'C
Output way : Momentary Toggle Latched Adjustable
 Code type : Learning code
Size :35*32*17mm
working/output way:

Through the sub circuit board behind the pad A, B, C, different local to switch working way

1 jog ,A, B, C,pads non-occupation, not connect
2 self-lock, shorted B, C
3, inter-locking shorted A, B

Jog---- press the button is ON . loosen your finger is OFF

Self -lock----- press one button for one time is ON .press the same button again is OFF

Inter-lock-------press one button is ON , press another button is OFF .

Learning Method:
Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 3 times until the indicator light on.

Remove code:
press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .

pacote inclui:

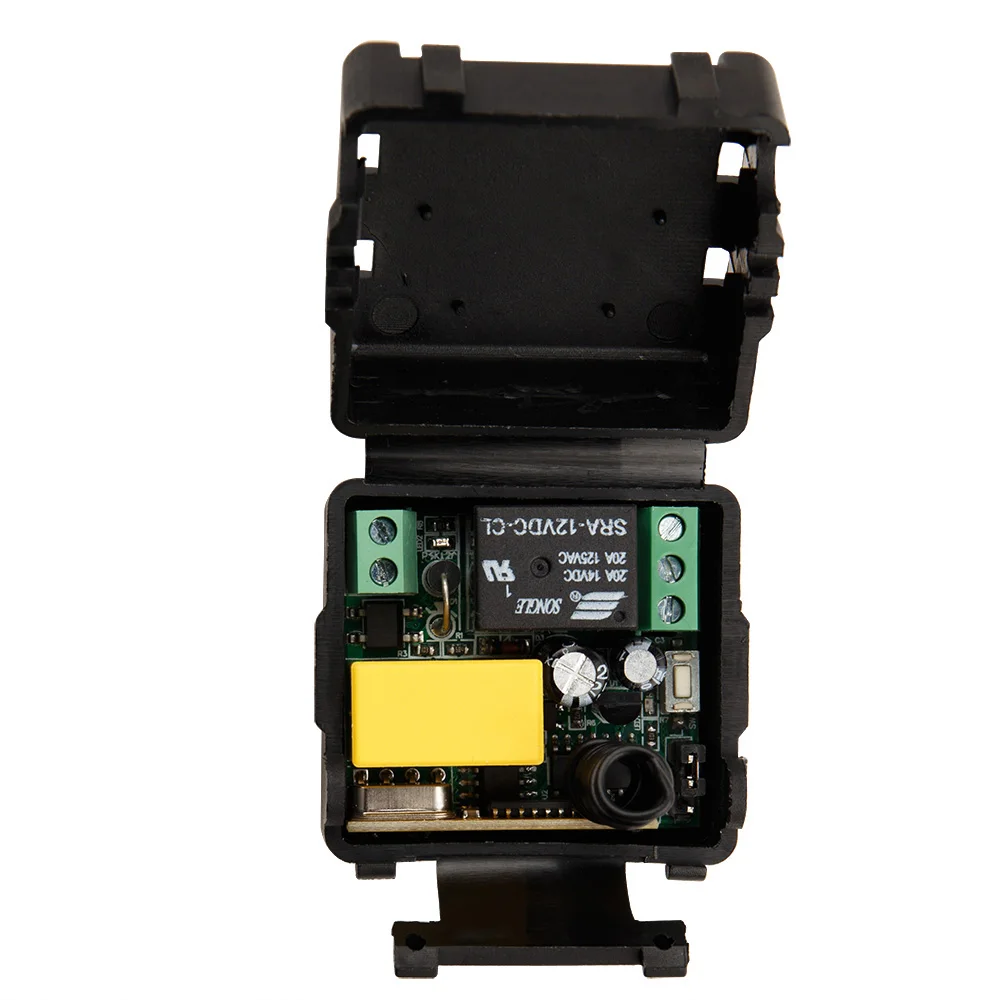

1*receiver

1*Transmitter
