433Mhz/315Mhz 12V 10A RF Wireless Remote switch system Receiver&Transmitter on sale | Обустройство дома



Сохраните в закладки:

Цена:1 453,59RUB
*Стоимость могла изменится

Количество:


Новое поступление

Характеристики

433Mhz/315Mhz 12V 10A RF Wireless Remote switch system Receiver&Transmitter on sale | Обустройство дома

История изменения цены

*Текущая стоимость 1 453,59 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Feb-22-2026 1845.56 руб. 1882.60 руб. 1863.5 руб.
Jan-22-2026 1497.1 руб. 1527.60 руб. 1512 руб.
Dec-22-2025 1816.95 руб. 1852.81 руб. 1834 руб.
Nov-22-2025 1802.96 руб. 1838.60 руб. 1820 руб.
Oct-22-2025 1438.82 руб. 1467.9 руб. 1452.5 руб.
Sep-22-2025 1773.11 руб. 1808.91 руб. 1790.5 руб.
Aug-22-2025 1758.29 руб. 1793.43 руб. 1775.5 руб.
Jul-22-2025 1744.63 руб. 1779.86 руб. 1761.5 руб.

Описание товара

433Mhz/315Mhz 12V 10A RF Wireless Remote switch system Receiver&ampTransmitter on sale | Обустройство дома

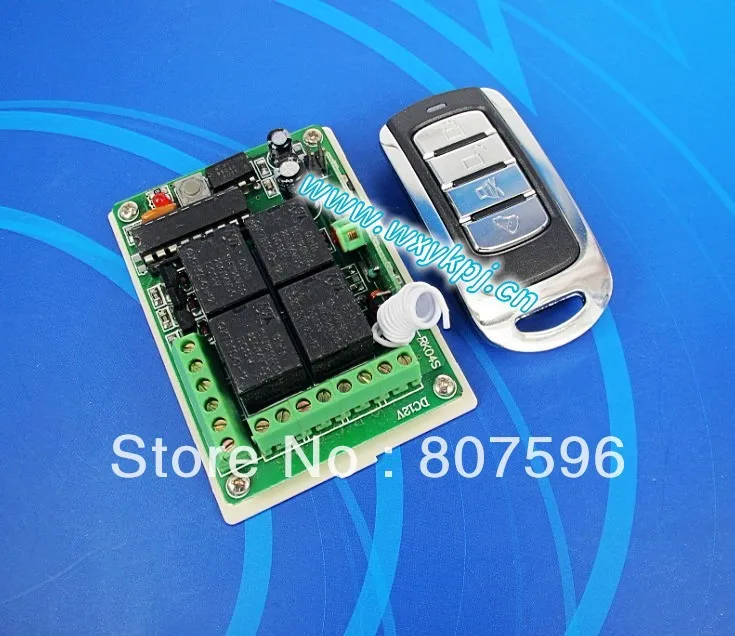

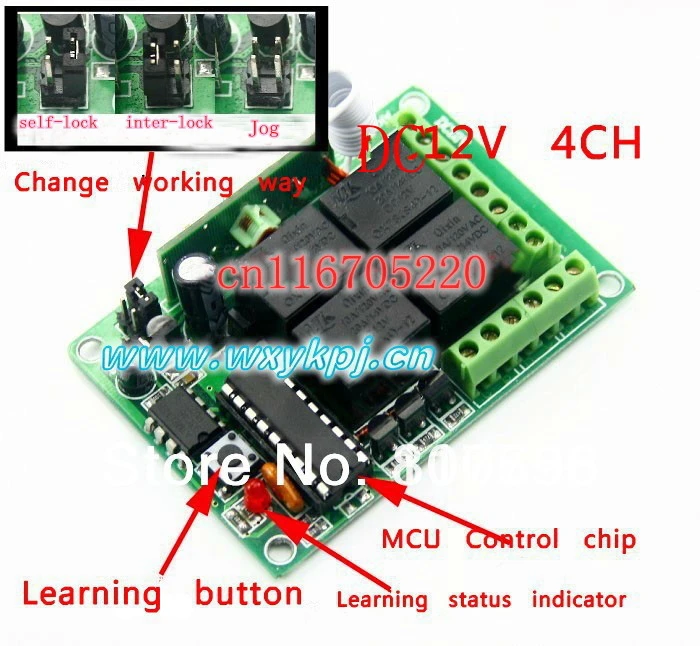

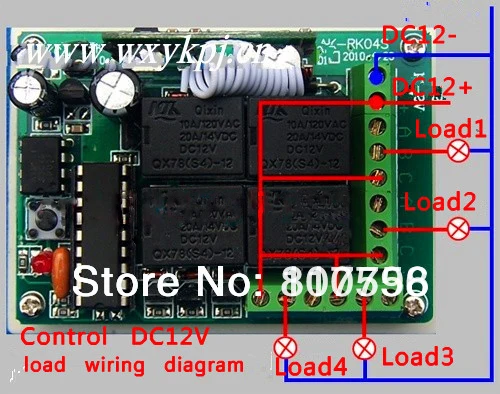

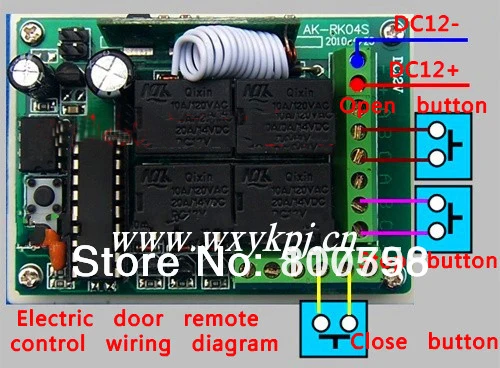

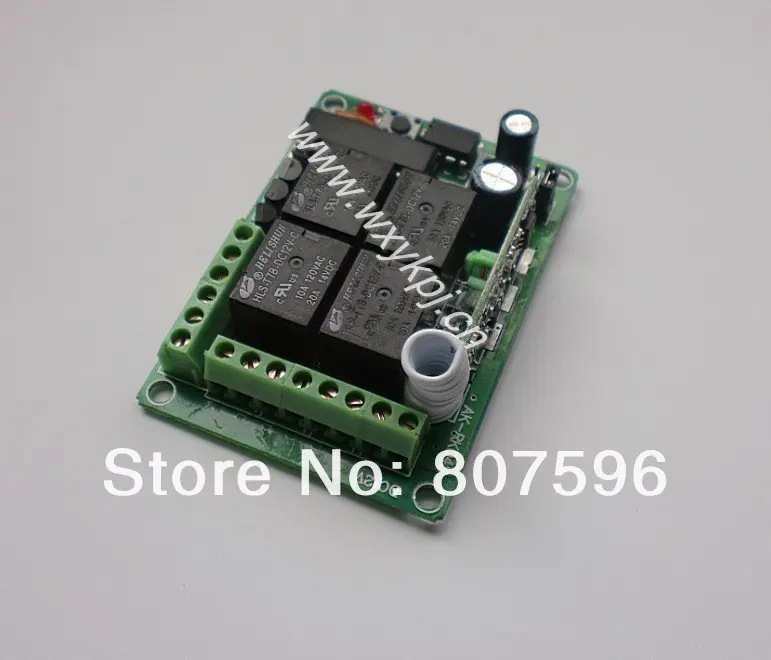

598999218_466111 627182618_994 598999220_788 598999214_769It is a learning code wireless remote control switch (receiver),the output way /working way can be change as you like ,it is easy to match the transmitter .The AK-RK04S-12 4 channel wireless remote control switch with 4 Relays. It can make the equipment turn or reverse .on/off and so on come true. The volume is small and the performance is stable and reliable ,high receive sensitivity, Application range: Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.The switch can compatible 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it . Output working way: 1. Self-lock ---connect the JP1 with the cutting out cap.2. Jog---the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.3.inter-lock---- Connect the Jp2 with the Cutting out cap,4. 2 Channel is self-lock and 2 channel is Jog ,connect the Jp1 and Jp2 with the cutting-out cap .Jog---- press one button is ON . loosen your finger on the same button is OFF .need one channel switch and one buttons remote control ) Self -lock----- press one button for one time is ON .press the same button again is OFF .need one channel switch and one buttons remote controlInter-lock-------press one button is ON , press another button is OFF . (need one channel switch and 2 buttons remote control Please notice that .here is the 4CH receiver and 4 buttons transmitter, you can choose the self-lock or jog or self-lock and jog together. Learning and remove method 1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control 3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully . Technique Data
1.working voltage :DC12V
2.quiescent condition :less than 6mA
3.working temperature :-40\'c+80\'c
4.receiver sensitivity : more than -105dBm
5.working frequency :315/433MHz
here is in set .we have made it work together ,so you don\'t have to care about what frequency are they .6.output voltage:DC and AC is optional7.output current : less than 3A8.max load current:10A9.72mm*52mm*26mm Remote control transmitter ::::::::::::::::::::::::::::::::::: Specifications: Remote Distance: 10~50MOperating Voltage: DC 12VFrequency: 315 (260-440MHZ, etc. more than 20 kinds of frequencies optional)Operating Current: 13 mAhCode Type: Fixed code / Rolling codeDimensions: 58 x 39 x 14mm / 2.29 x 1.54 x 0.55in(L x W x H) Features:This product covers application ranging from simple domestic remote control to autonomous controlExtremely easy to set up and useIt\'s applied to the annunciator of family, car, motorcycle etc.These remote controls are designed to control a wide variety of electronic devices with a wireless signal


you may also like>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>


if you would like to order more.pls feel free to tell me,we will give you more discount

welcome to our store

enjoy shipping




12V 4 CH 10A RF wireless remote control system
