Overview

• HCVAHDN Security- AHD CCTV Camera System, A guaranteed and reliable Security Solution for your Home and Business!
• 720P/960P/1080P/4.0MP/5MP High Definition and Video at day and night. Email alerts and Motion detection.

• 4MP indoor outdoor IR Day Night vision cameras, free app for P2P Cloud function and storage, support android,iPhone,ipad,PC.

• *Support 4MP AHD cameras input and HDMI Output .
• *P2P cloud service for Android/iOS mobile devices remote view anywhere anytime.
• *Motion detection recording. The DVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving.
• *Email alert and alarm notification. When motion detection is triggered, the DVR will automatically send out buzzer sound and alarm notifications to your email, including snapshot on the spot.
• *Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE ,Chrome,Firefox,Safari browser.
• *Support 3.5 inch SATA port hard drive, capacity about 500G/1.5T/2T/3T/4TB/5TB/6TB, and less than 500G is not supported.
• *This DVR default VGA resolution is 1280*1024, so we suggest you to use the monitor with 1280*1024 or higher resolution 1920*1080 HDMI  for normal use.
• AHD DVR NVR HVR 5 IN 1,Support all ahd camera ,analog camera,ip camera,TVI Camera,CVI Camera.

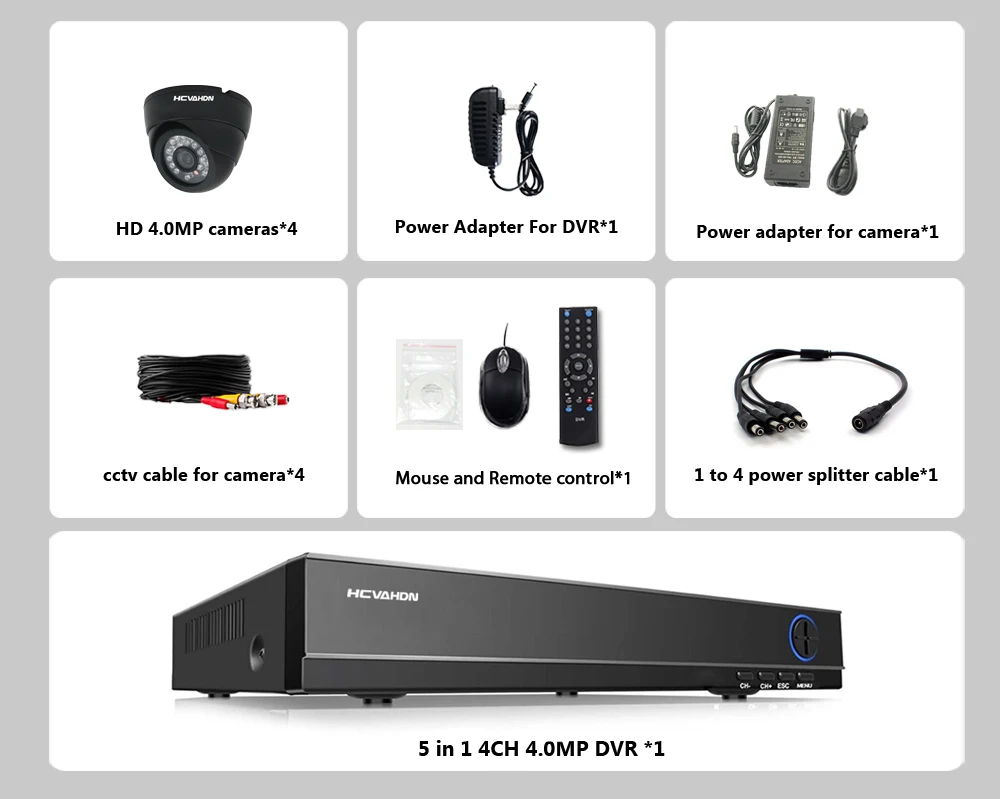

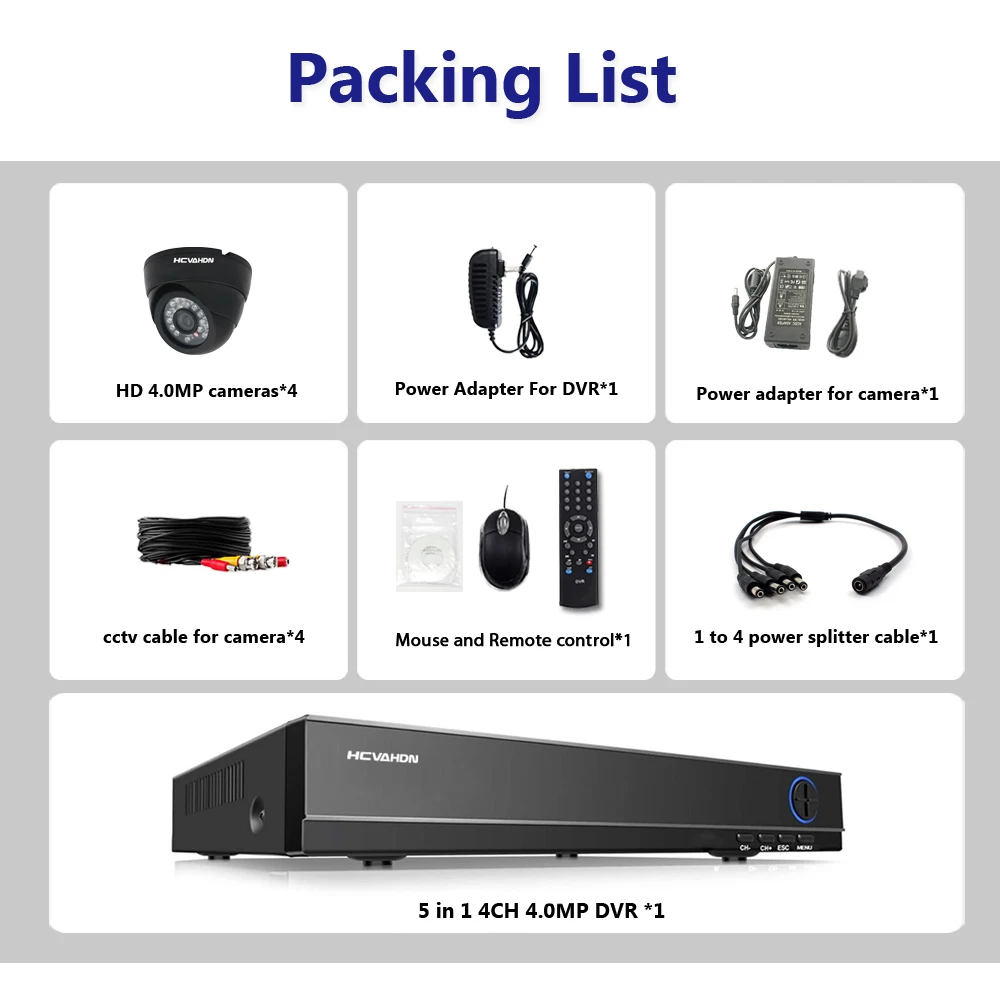

Items included

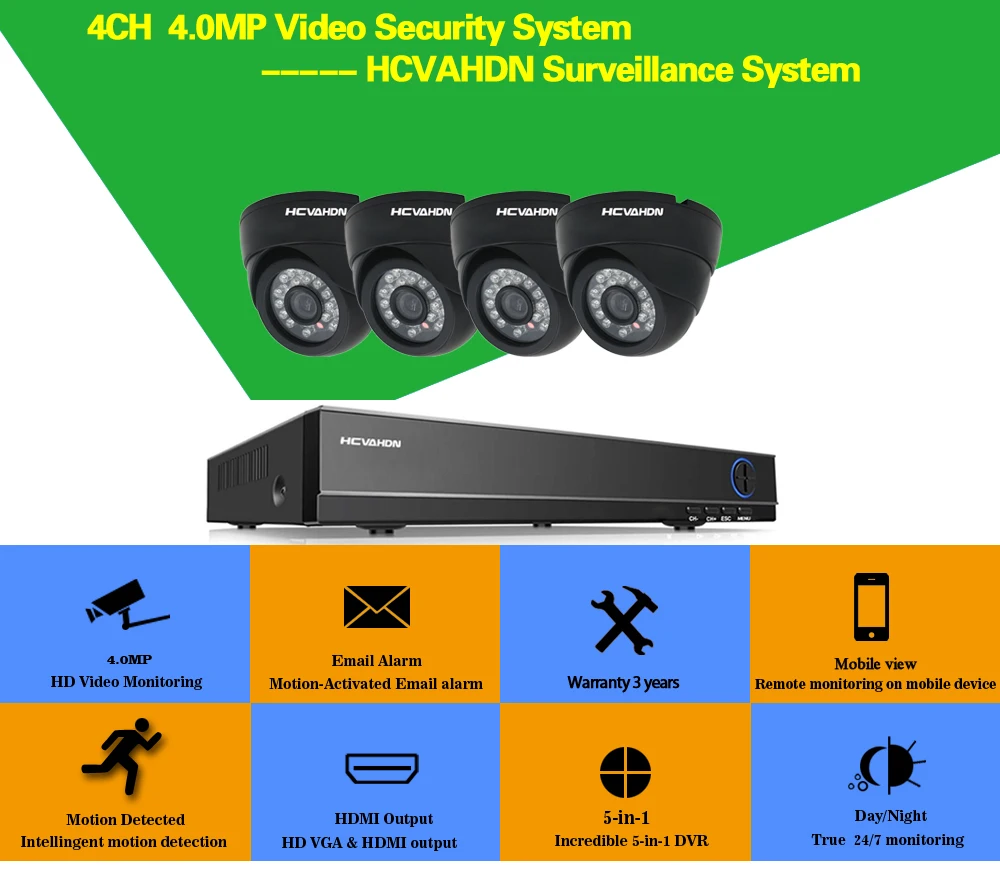

• 1 X 4CH AHD 4MP DVR NVR HVR 5 in 1 Digital Video Recorder

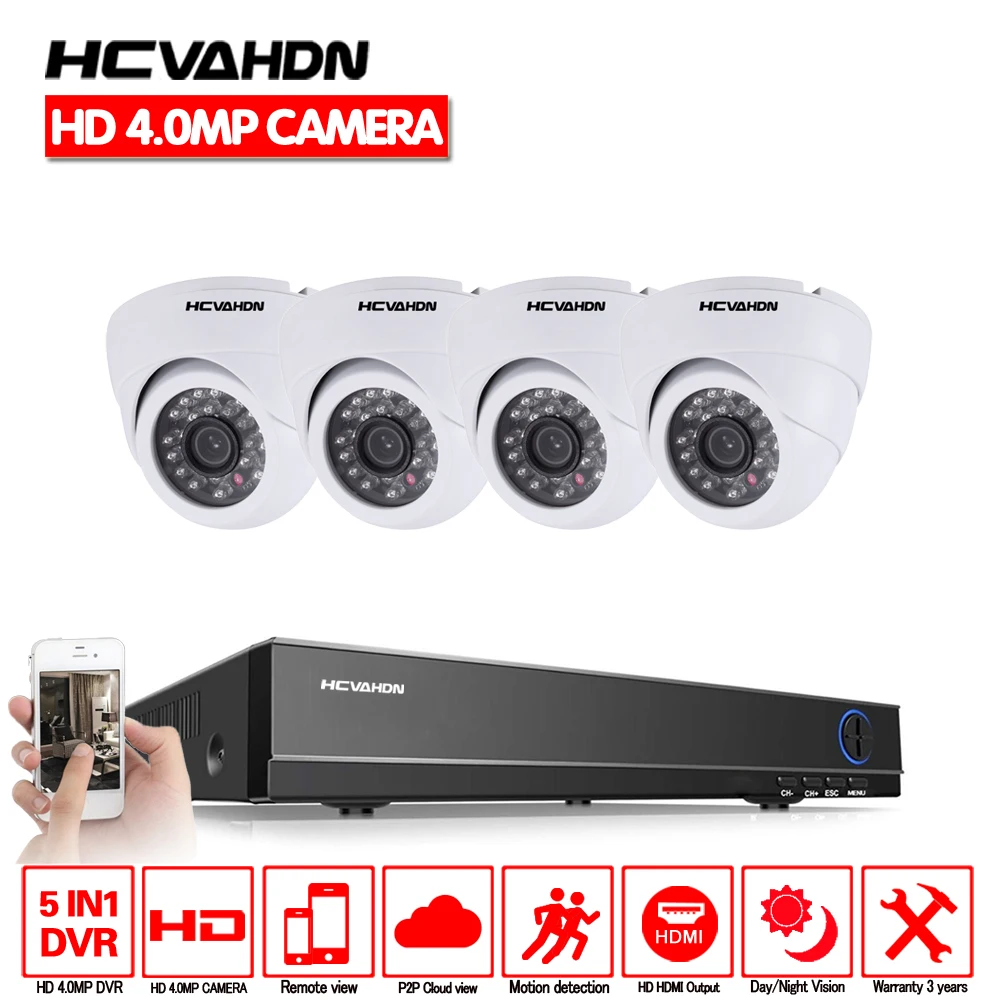

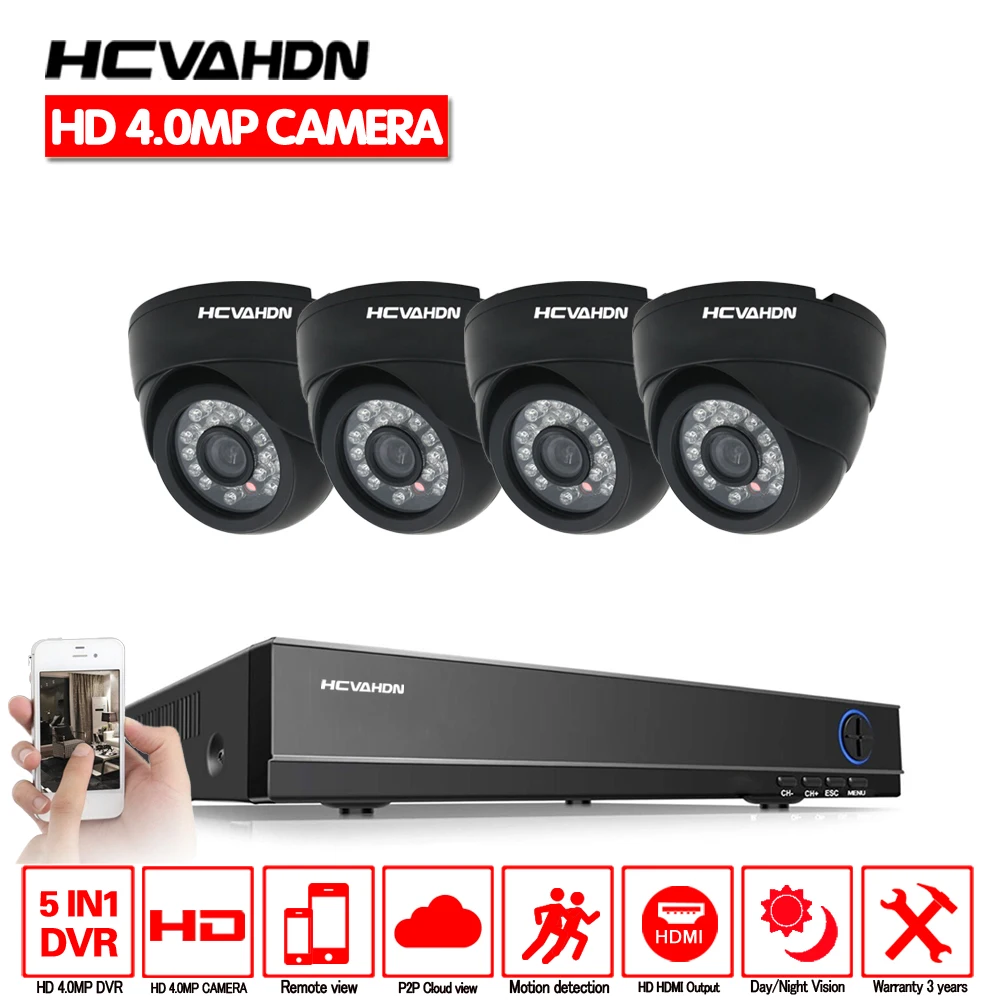

• 4 x HD 4.0MP indoor outdoor IR Day Night vision dome cameras
• 4 X 65feet(20m) cctv video cable for camera
• 1 x 12V 3A power adapter for cameras
• 1 x 12V 2A power adapter for DVR
• 1 X 1 to 4 power splitter cable
• 1 X USB Mouse for DVR
• 1 X Software CD for DVR
• 1 X Remote Control for DVR
• No Hard Disk included !!!

Product Specifications

System

Main processor: Embedded processor

Operating system: Embedded Linux

Video&Audio

Video Fortmat :PAL or NTSC

Video compression:H.264

Encode capacity:4*4MP

Decode capacity:4*4MP/4*4MP

Recording Frame Rate:4MP@8fps /3MP@10fps / 1080P@12fps

Analog input:4*4MP

Digital input:4*5MP(Network)

Hybrid input:2*4MP(analog)+2*4MP(Network)

Audio Input:4 RCA Input

Audio Output:1 RCA Output

Audio compression:G.711A

Recording

Compression Format: H.264

Recording Resolution: NTSC: 4MP PAL:  4MP

Recording Modes: Manual/Motion/Schedule

Hard drive: Internal SATA hard drive required for recording,support up to 6TB

Network

LAN Connection: YES

Network Interface: RJ45

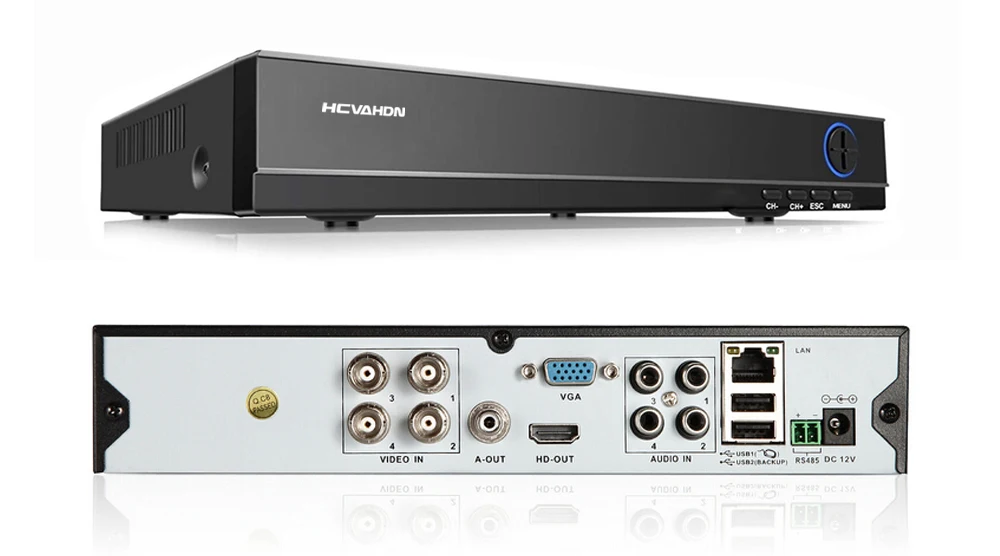

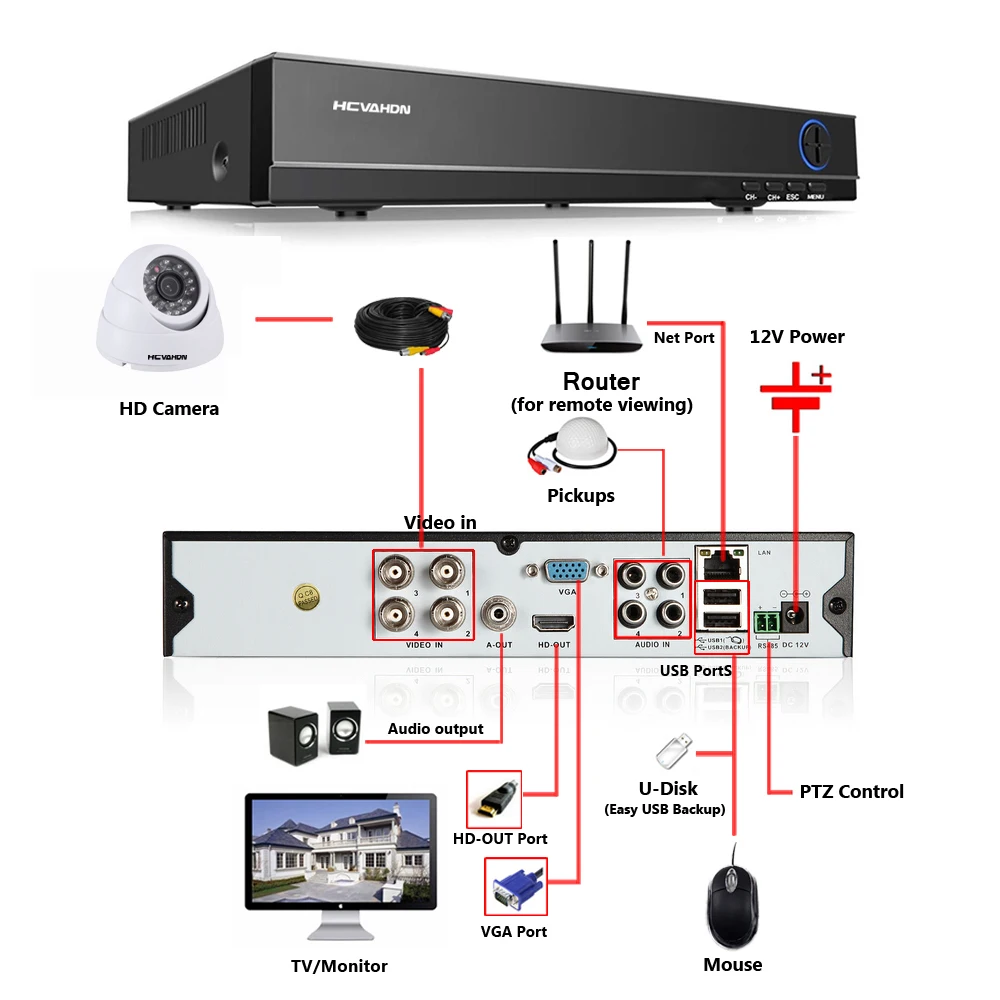

Interface

Video input : 4ch BNC

Video output :1ch VGA, 1ch HDMI

Audio input :4ch RCA

Audio output :1ch RCA

Network interface :RJ45 10M/100M

PTZ control :1*RS485, Support multiple PTZ protocols

USB :2* USB 2.0

HDD :1*SATA port (Max 6TB/per)

Wireless :3G, WIFI (extension via USB)

General

Power Supply : DC 12V

Back up method : External storage via USB

Temperature：-20℃+50℃

Humidity ：-10%-90%

USB Mouse：included

Remote Control : YES

Dimension：255mm(length)*235mm(width)* 45mm(height)

Weight：1.5KG

DVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

Video

Image sensor:1/3"inch CCD

Video quality:4MP

Lens:3.6mm lens

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-30°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Weatherproof:no

Minimum Illumination: 0.0 Lux

Body Construction:Bullet with Built-in Wall Mount

Night Vision

Distance:Up to 40m

IR Cut Filter:yes

Number of IR Lens:24pcs leds

AHD 4MP High Definition Display

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 4MP Resolution.The angle will be more larger,and the image will be more clearer.

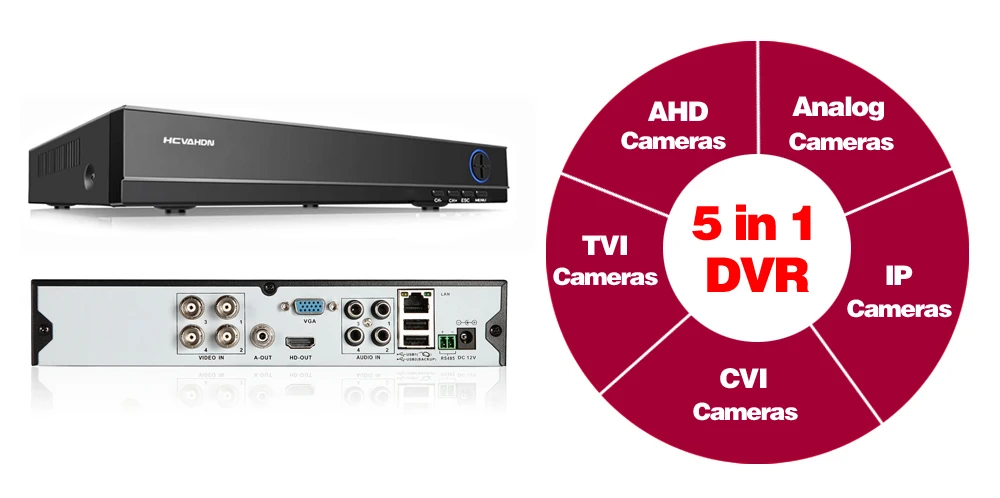

AHD DVR NVR HVR 5 IN 1

You can freely enjoy five connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 5 recordering modes.for your option:Analog / Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

Multiple viewing options

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

clarity. (HD Cable Not Included)

View on TV or PC Monitor

For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

Remote viewing anywhere,anytime

Instant email alert

Motion Detection Recording

Plug and play, Easy to use

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

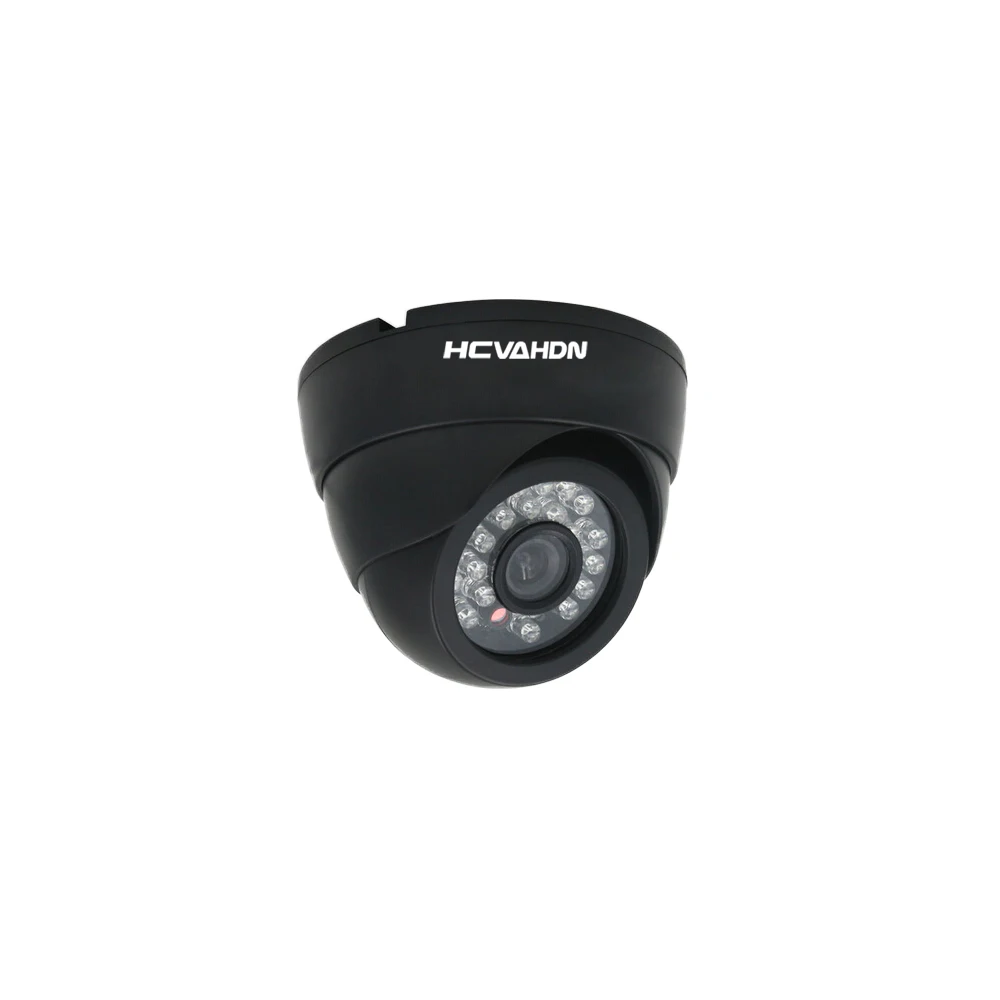

HD CCTV Security Camera

By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion.

Analog HD AHD video output;

The transmission distance is 500 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display.

IR-CUT Filter

You can install it by yourself
