RUNZE Fluid Store
Магазина RUNZE Fluid Store работает с 27.12.2016. его рейтинг составлет 98.18 баллов из 100. В избранное добавили 379 покупателя. Средний рейтинг торваров продавца 4.9 в продаже представленно 248 наименований товаров, успешно доставлено 277 заказов. 55 покупателей оставили отзывы о продавце.
Характеристики
Stepper Motor Flexible Hose Peristaltic Pump Compact Structure Space Saving Mounting for TOC Analyzers Factory Direct Supply |
История изменения цены
*Текущая стоимость US $94.00 - 103.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-22-2026 | 112.18 руб. | 118.97 руб. | 115 руб. |
| Feb-22-2026 | 111.19 руб. | 117.37 руб. | 114 руб. |
| Jan-22-2026 | 93.63 руб. | 98.99 руб. | 95.5 руб. |
| Dec-22-2025 | 109.76 руб. | 114.77 руб. | 111.5 руб. |
| Nov-22-2025 | 95.41 руб. | 100.34 руб. | 97.5 руб. |
| Oct-22-2025 | 107.11 руб. | 112.80 руб. | 109.5 руб. |
| Sep-22-2025 | 106.63 руб. | 111.73 руб. | 108.5 руб. |
| Aug-22-2025 | 105.34 руб. | 110.5 руб. | 107.5 руб. |
| Jul-22-2025 | 104.33 руб. | 109.23 руб. | 106.5 руб. |
Описание товара

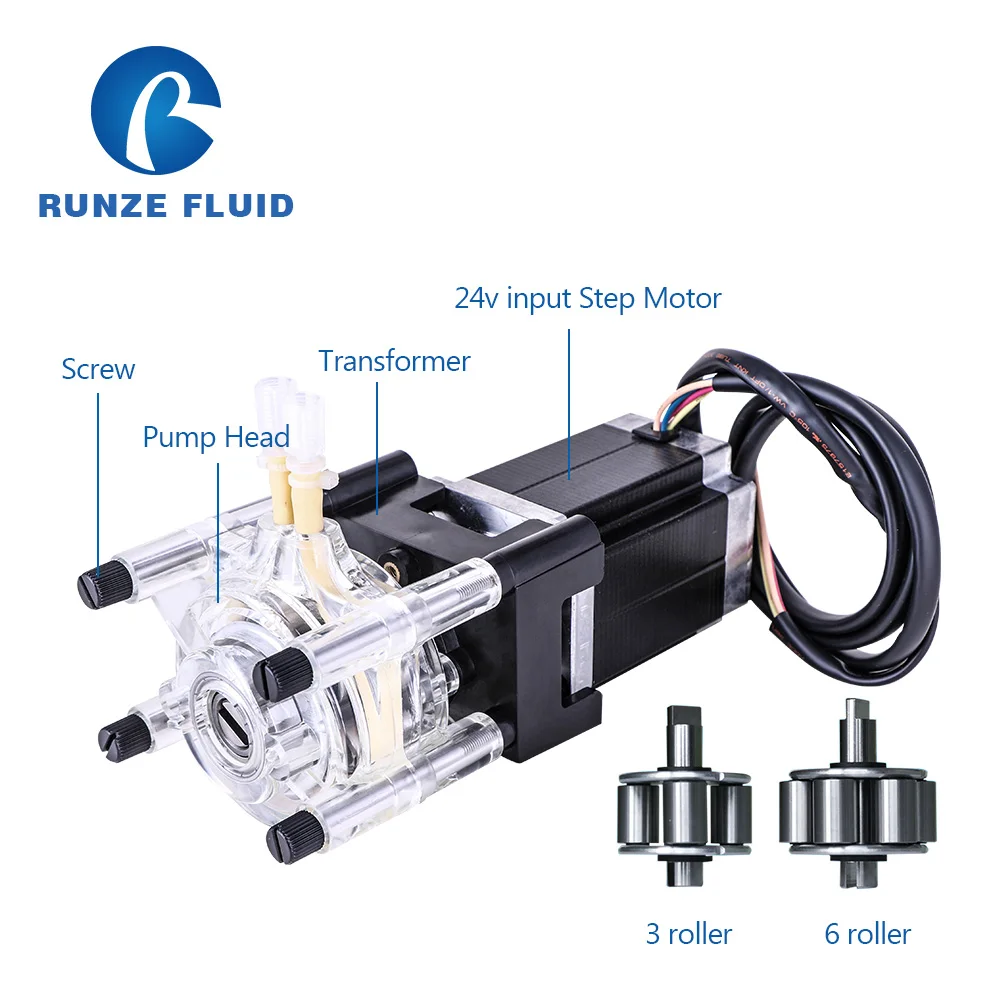

SN15/SN25 peristaltic pumps are designed with transparent PC pump head for easy observation on inside liquids, 3 rollers for bigger flow rate but bigger liquid pulse and 6 roller for samaller flow rae but lower pulse, PC material is workable for liquid temperature uner 45℃ under normal pressure. NMB Japan stepper motor for high precision and stability and longer service life. Pump heads ate stackable to realize double channel liquid transfer system. The high cost performance make it very popular in liquid analyzers.
Dimension (unit:mm)
Motor Parameters
|
|
57 big motor |
57 small motor |
|
Max power |
18.8W |
12W |
|
Step angle |
1.8° |
1.8° |
|
Phase |
2 |
2 |
|
Phase voltage |
4.0V |
2.6V |
|
Phase current |
2.35A |
2.3A |
|
Resistance |
1.7Ω ±1.7 |
1.15Ω ±0.17 |
|
Inductance |
7mH REF |
1.85mH REF |
|
Insulation |
100mΩ MIN |
100mΩ MIN |
|
Temperature upper limit |
80℃MAX |
80℃MAX |
|
Explosion-proof level |
B |
B |
Technical Parameter
|
Model No. |
BJ30-SN15/SN25 |
|
Roller |
3/6 rollers |
|
Roller material |
304 SST |
|
Pump head material |
PC |
|
Motor type |
NMB Japan 57 stepper motor |
|
Motor voltage |
DC24V input |
|
Rated current |

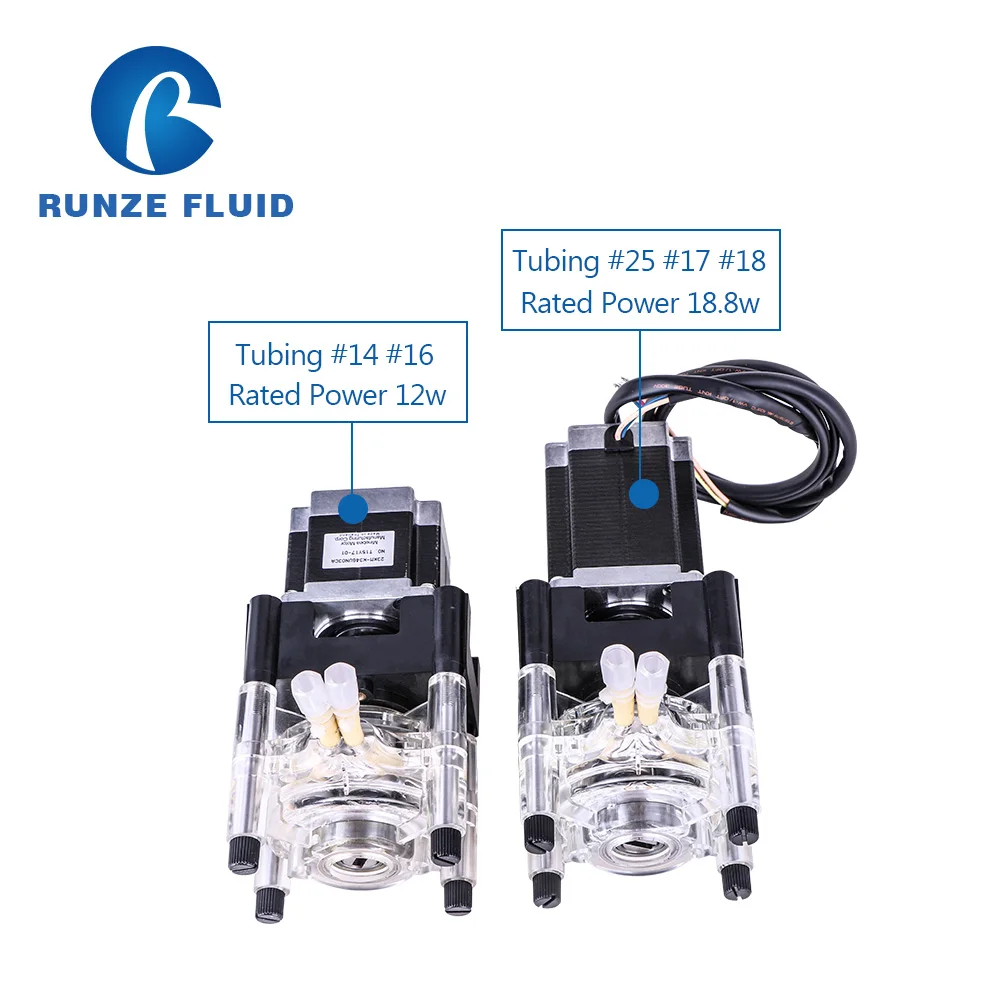

1.5A (small motor) 2.3A (big motor) |
|
Rated power |
12W (small motor) 18.8W (big motor) |
|
Speed range |
0-500rpm |
|
Flow rate |
0-1615ml/min |
|

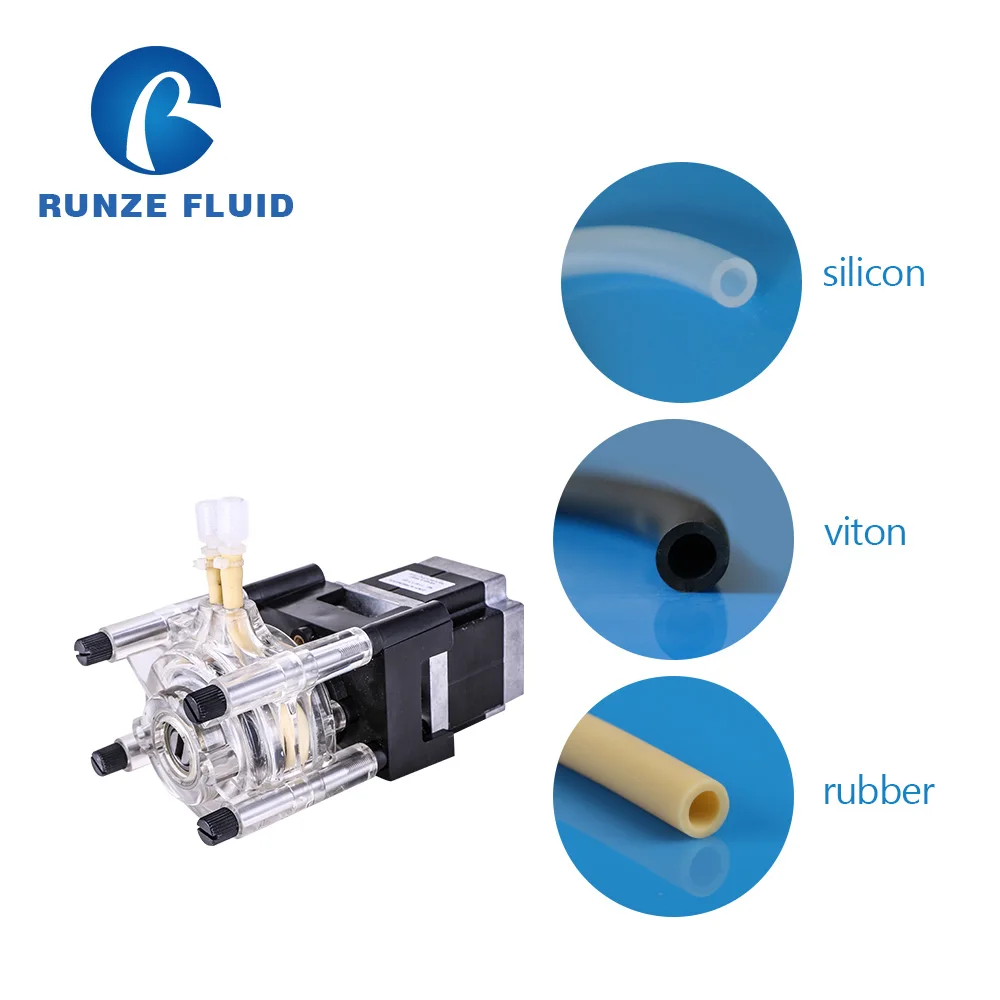

Tubing type |
Silicon/Rubber/Viton |
|
Tubing No. |
14# 16# 25# 17# 18# 15# 24# |
|
Liquid temperature |
＜45℃ |
|
Working temperature |
0-40℃ |
|
Working humidity |
＜80% relative humidity, non-condensing |
|
Working Max DB |
70db |
|
Net weight |
1768g |
Tubing Replacement Steps
Model Numbers
|
Model No. |
Order Options |
Tubing Size (mm) |
Remark |
|
BJ30-SN15-3-DX-14# |
3 roller Tube #14 |
ID1.6*OD4.8*WT1.6 |
1. The exit diameter of SN15 pump head vary from different tubing sizes, that is to say, each tube size need a specific pump head, so we classify the model numbers by tubing numbers. 2. DX – small motor DD – big motor |
|
BJ30-SN15-3-DX-16# |
3 roller Tube #16 |
ID3.2*OD6.4*WT1.6 |
|
|
BJ30-SN15-3-DD-25# |
3 roller Tube #25 |
ID4.8*OD8.0*WT1.6 |
|
|
BJ30-SN15-3-DD-17# |
3 roller Tube #17 |
ID6.4*OD9.6*WT1.6 |
|
|
BJ30-SN15-3-DD-18# |
3 roller Tube #18 |
ID8.0*OD11.2*WT1.6 |
|
|
BJ30-SN25-3-DD-15# |
3 roller Tube #15 |
ID4.8*OD9.8*WT2.5 |
|
|
BJ30-SN25-3-DD-24# |
3 roller Tube #24 |
ID6.4*OD11.4*WT2.5 |
|
|
BJ30-SN15-6-DX-14# |
6 roller Tube #14 |
ID1.6*OD4.8*WT1.6 |
|
|
BJ30-SN15-6-DX-16# |
6 roller Tube #16 |
ID3.2*OD6.4*WT1.6 |
|
|
BJ30-SN15-6-DD-25# |
6 roller Tube #25 |
ID4.8*OD8.0*WT1.6 |
|
|
BJ30-SN15-6-DD-17# |
6 roller Tube #17 |
ID6.4*OD9.6*WT1.6 |
|
|
BJ30-SN15-6-DD-18# |
6 roller Tube #18 |
ID8.0*OD11.2*WT1.6 |
|
|
BJ30-SN25-6-DD-15# |
6 roller Tube #15 |
ID4.8*OD9.8*WT2.5 |
|
|
BJ30-SN25-6-DD-24# |
6 roller Tube #24 |
ID6.4*OD11.4*WT2.5 |
Flow Rate Table
Application Note
1. These data are generated under room temperature without extra pressure, test media is water. Your final test results may vary depending on variables such as solvent, material and size of tubing, temperature, pressure, humidity, voltage, current etc.
2. BJ30-SN15/SN25 peristaltic pump works for low viscosity liquid.
3. BJ30-SN15/SN25 peristaltic pump works for corrosive and non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.
4. We will standardly equip 20cm tubing and 2 pieces straight connectors for each pump of your order, if you need more tubes and connectors for spare use, you may order from our store.
5. 1 piece stepper motor wire will be standardly shipped for each pump of your order.

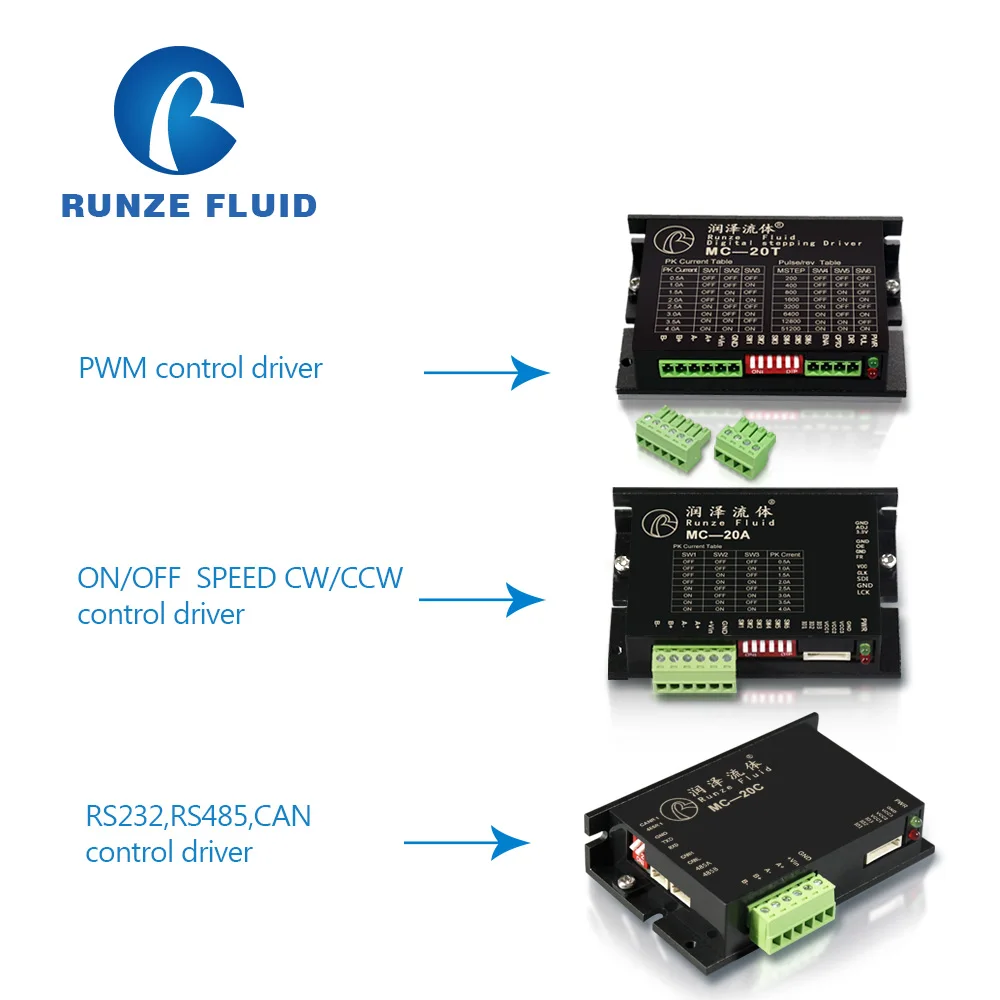

6. BJ30-SN15/SN25 peristaltic pump can be controlled by ON/OFF SPEED CW/CCW control (MC-20A), PWM control (MC-20T), RS232/RS485/CAN communication control (MC-20C), you may order corresponding driver from our store.
7. If you need stepper motor manual, please contact customer service.
Control Drivers
Shopping Guidance
1. Unit price is for 1pcs BJ30-SN15 peristaltic pump, if you need SN25, please contact customer service.
2. Each pump will be well packed by thick foam and outer carton
3. BJ30-SN15/SN25 was equipped step motor with magnetism, so we ship by TNT, UPS or FedEx with 4-7working days to most countries.
4. For customers from Russia and Kazakhstan, we will ship by CDEK or PONY or SPSR line.
5. For customers from Brazil, Chile and Argentina, please leave us your tax number when ordering which is required by shipping agent.
6. Please leave your correct receiver name, shipping address, zip code, phone number with country code for timely shipment.
7. For big orders, please contact customer service to get better price.
8. If you need group of items, please add them to your shopping cart, then forward the order but NOT pay it, we will combine shipping cost.
9. Any questions, please leave us messages, we will handle it ASAP, greatly appreciated if you can talk to us before open an issues.
10. Greatly appreciated if you could leave us 5 star positive feedbacks when satisfied with our products which will encourage us to do better in future cooperation.
