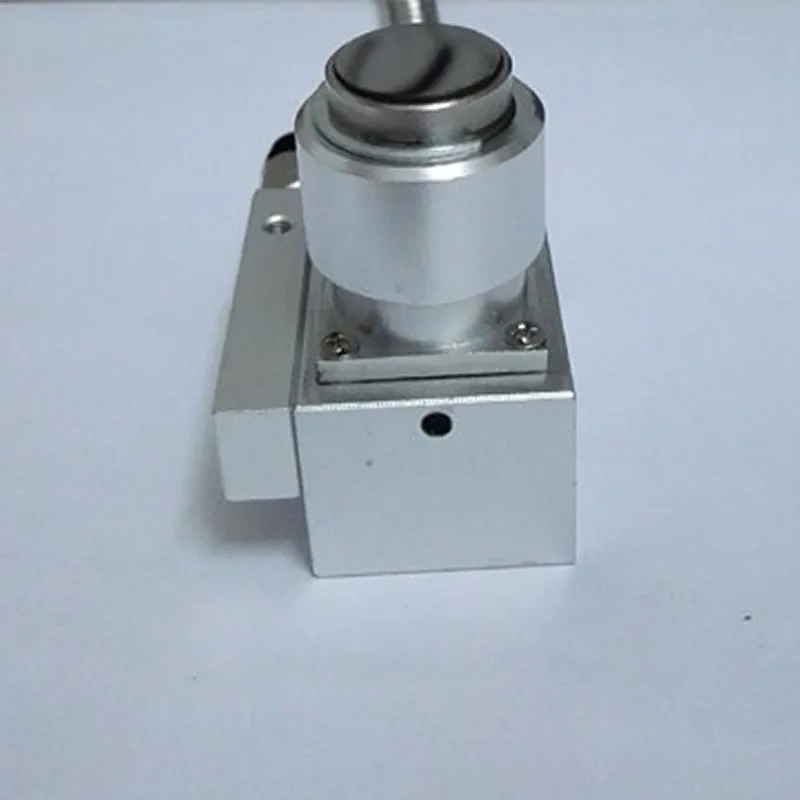

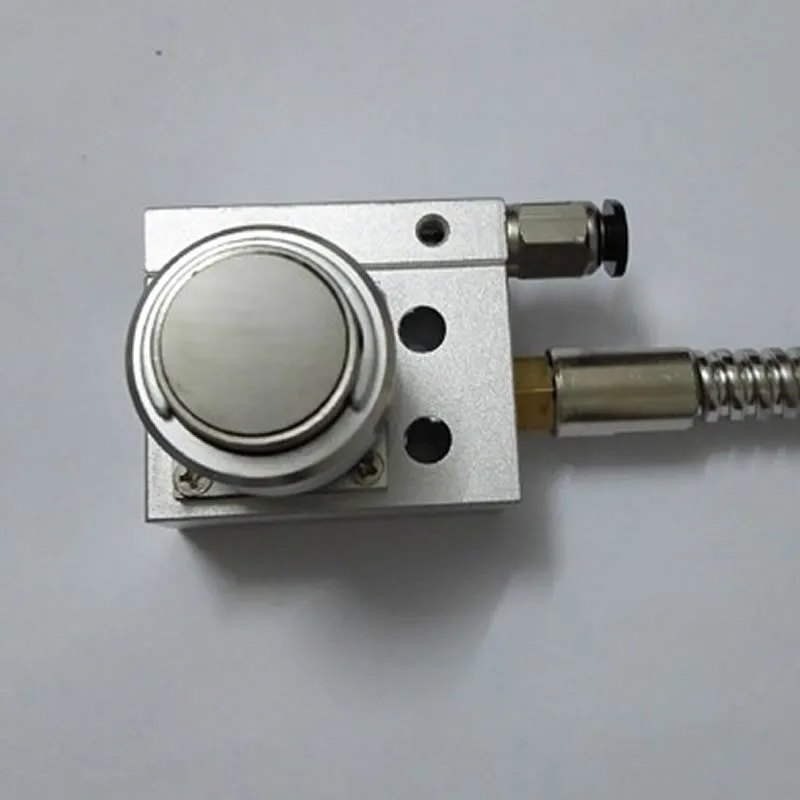

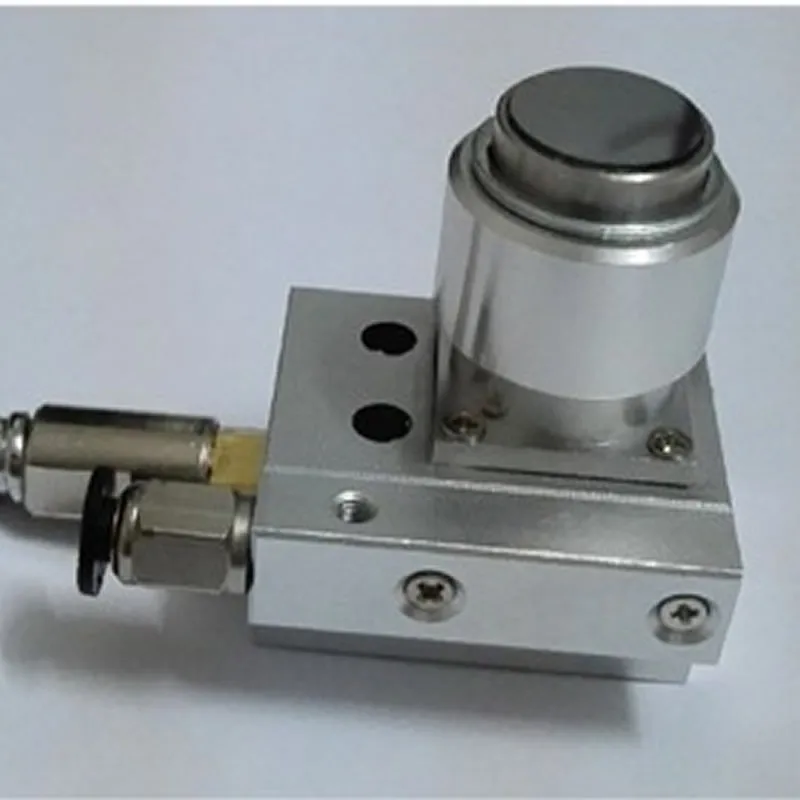

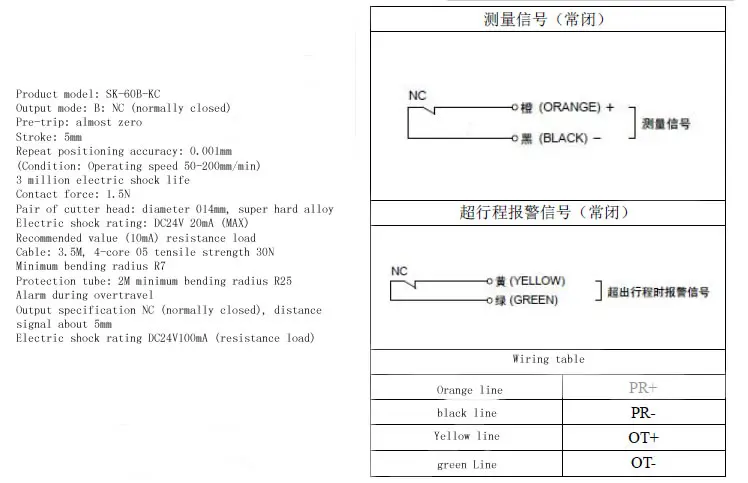

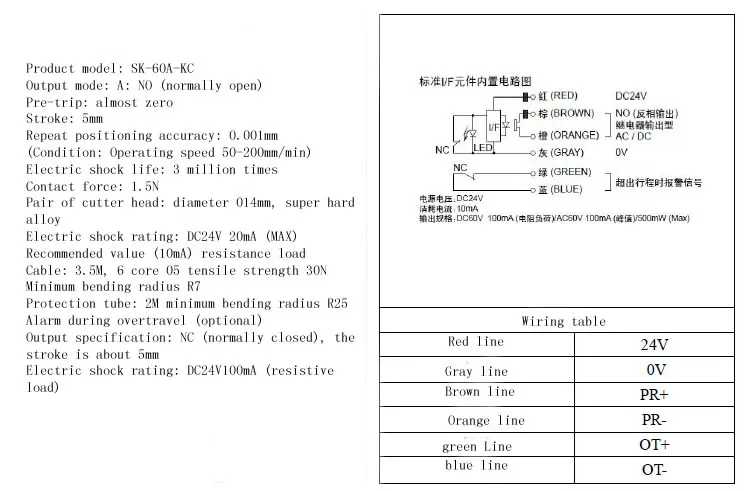

The company mainly produces MACH3 control card, electronic handwheel, tool holder and the main shaft of Zhenyu brand, and many large-scale advertising engraving machine, stone engraving machine, wood engraving machine, jade engraving machine, plasma cutting machine, laser Engraving machines, CNC machining centers, CNC vehicles, CNC milling, CNC drilling, high-gloss machines, 3D scanners, as well as large-scale processing machines and custom machines, etc., have a cooperative relationship, thank you for your support, and thank these companies for Our company's recognition!    The repeatability of this product is up to 0.001mm, four-layer seal design, completely oil-proof and waterproof, simple wiring, convenient installation and long service life. It is suitable for Beijing Jingdiao, New Generation, Baoyuan, Weihong, MACH3, etc. CNC engraving machine, engraving and milling machine, etc., can completely replace Meidelong and various brands of tool setting instruments!    product model:  SK-60A-WW: Normally open SK-60B-WW: normally closed SK-60A-KW: Normally open with stroke protection SK-60B-KW: normally closed, with stroke protection SK-60A-WC: Normally open with blowing SK-60B-WC: normally closed, with blowing SK-60A-KC: normally open, with stroke protection and blowing SK-60B-KC: normally closed, with stroke protection and blowing Installation instructions: 1. The contact surface of the tool and the tool setting tool must be perpendicular and vertically contact with the contact surface. Please install it on the workbench where there is less iron filings.   2, please be sure to use within the rated power supply range, the voltage should be controlled at DC10-30V, the current is below 20mA, and the ambient temperature range is -25oC ~ 70oC.   3. The diameter of the tool setting should be controlled below 20mm in diameter. The tool setting speed should be controlled at 50-200mm/min. The tool center should fall in the center of the tool setting.   4. When using the air blowing function, the outer diameter of the air pipe is 6 mm in diameter and the inner diameter is 4-5 mm in diameter. Pay attention to cleaning iron scraps and cutting oil attached to the contact surface.         usage notice:   1. Do not exceed the stroke of the tool holder when contacting, otherwise the tool and tool will be damaged. (The stroke is 5.0mm)   2. Do not release the contact surface of the tool setting tool when you touch it by hand to avoid damaging the internal structure of the tool setting tool.   3. When the tool and the tool setting tool are in contact with the tool setting, the tool must be lifted vertically to leave the contact surface. It cannot be moved laterally. If the tool moves laterally, the tool setting device will be damaged.
