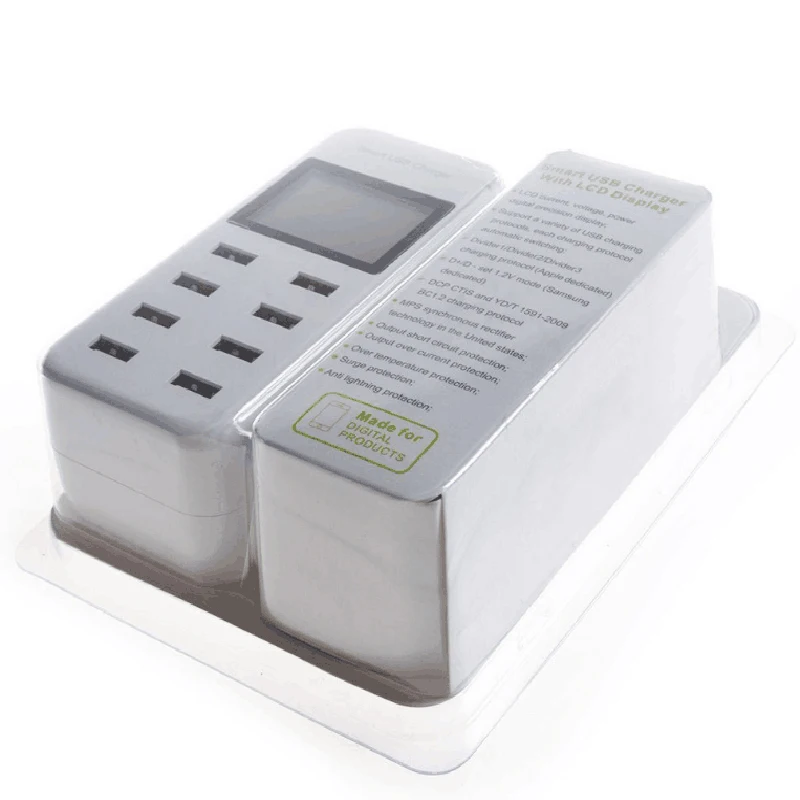

Зарядное устройство с 8 USB-портами ЖК-экраном | Электроника
1 438,19 руб.
Новое поступление
IG-N-Switch Joy-Con NS запасные части ЖК-экран для Nintendo Switch Замена | Электроника
Настенное зарядное устройство для дома Для SAMSUNG SLB-1674 GX-10 | Электроника
286,90 руб.
Bihuade New Arrival Hot 2 Port Mini Dual Usb 5v 2.1a Car Charger Adapter Bullet Universal Use | Электроника
SOONHA 3-в-1 быстрое автомобильное зарядное устройство разветвитель для iPhone X 6 7 8 XS Max
192,50 руб.
TOMO USB интеллектуальное зарядное устройство 18650 Li-ion портативное с ЖК-дисплеем
863,65 руб.
Настенное зарядное устройство для ASUS ZenPad 3s 10 9 7 Z500 lumia 950XL nexus 6p LG 5X Pixel c HP X2 210 G1 Pr 5 В 3
707,30 руб.
Зарядное устройство Liitokala Lii-100 500 для NiMh литиевых аккумуляторов 3 7 В 18650 18350 18500 16340
636,49 - 1 990,60 руб.
Характеристики
Lithium Battery Protection Board 7S 24V 20A Bms With Balance Function | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-23-2026 | 0.70 руб. | 0.35 руб. | 0 руб. |
| Feb-23-2026 | 0.26 руб. | 0.46 руб. | 0 руб. |
| Jan-23-2026 | 0.17 руб. | 0.35 руб. | 0 руб. |
| Dec-23-2025 | 0.33 руб. | 0.39 руб. | 0 руб. |
| Nov-23-2025 | 0.57 руб. | 0.20 руб. | 0 руб. |
| Oct-23-2025 | 0.8 руб. | 0.52 руб. | 0 руб. |
| Sep-23-2025 | 0.87 руб. | 0.88 руб. | 0 руб. |
| Aug-23-2025 | 0.40 руб. | 0.12 руб. | 0 руб. |
| Jul-23-2025 | 0.13 руб. | 0.36 руб. | 0 руб. |
Описание товара
Color: green
Material: PCB
Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and dae
It will protect battery pack from overcharging, over-discharging over-current and short circuit
With equilibrium function to keep each cell in balance and good service life
This protection board is used for 7 series 24V Lithium batteries, comes with wire
Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries
Product description
Features:
Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and dae. It will protect battery pack from overcharging, over-discharging over-current and short circuit. With equilibrium function to keep each cell in balance and good service life. This protection board is used for 7 series 24V Lithium batteries, comes with wire. Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.
Specifications:
Size: 90mm*47mm*10mm / 3.54*1.85*0.39 inch
Equalizing Current: 80mA (VCELL=4.20V)
Equalizing Point: 4.18±0.03V
Overcharge Threshold: 4.3±0.05V
Overcharge Time Delay: 75mS
Overcharge Release: 4.05±0.05V
Over-discharge Threshold: 2.4±0.08V
Over-discharge Time Delay: 5mS
Over-discharge Release: Disconnect load, and voltage of each battery cell is higher than over-discharge threshold
Over-current Threshold: 40A
Over-current Release: Disconnect load release
Working Current; 20A
Quiescent Power Dissipation: Less than 500uA
Short Circuit Protection: Yes, disconnect load can self-recovery
Package Includes:
1 x Battery Protection Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
