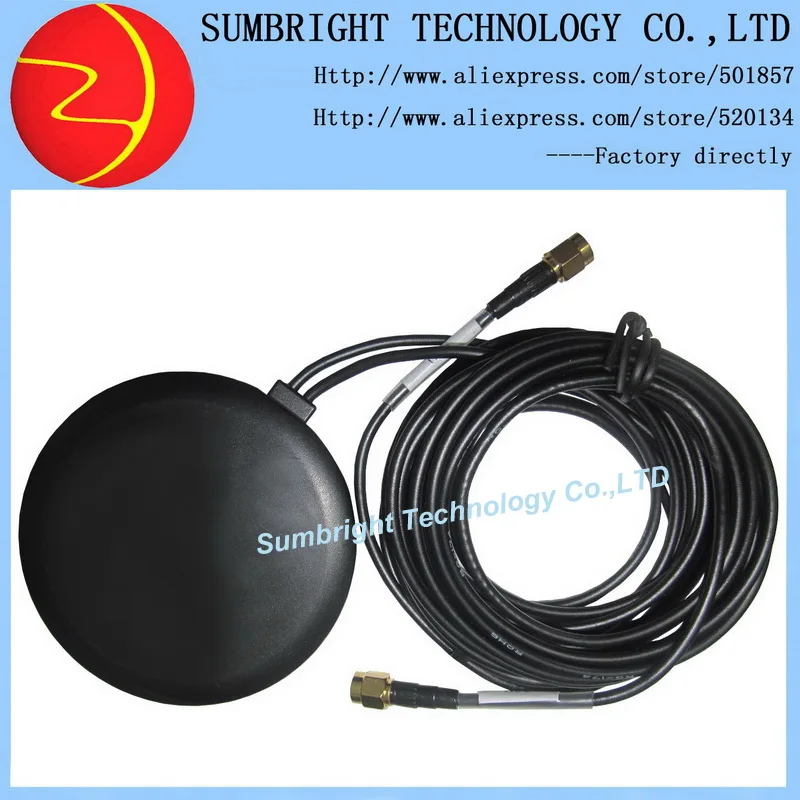

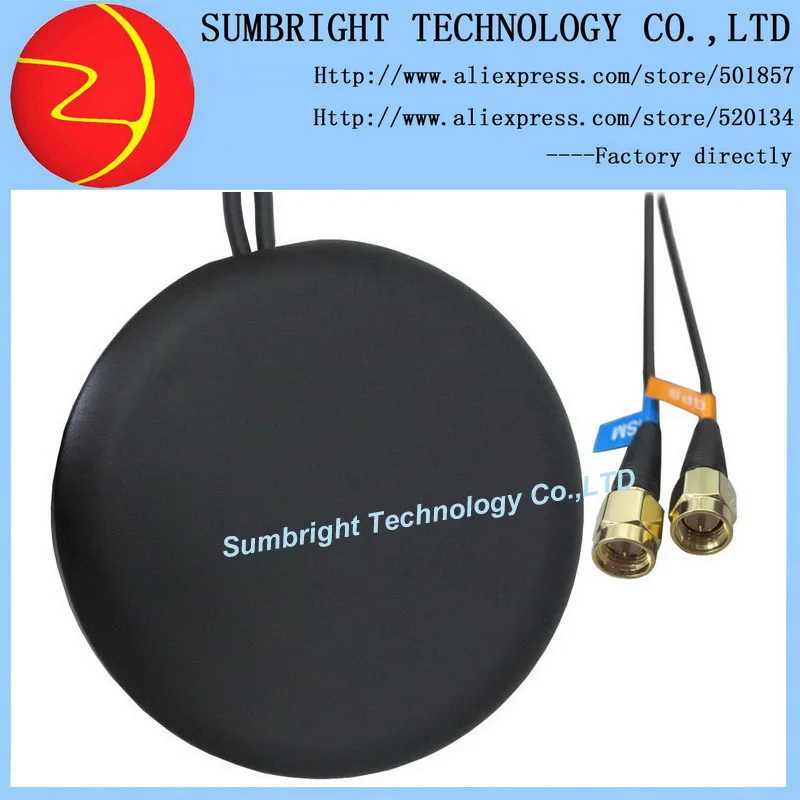

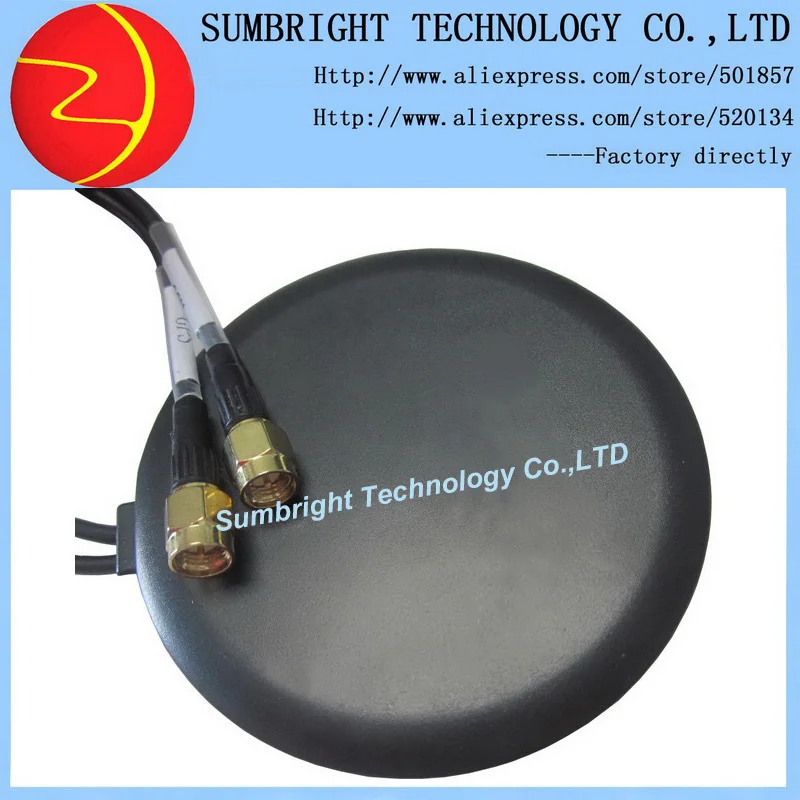

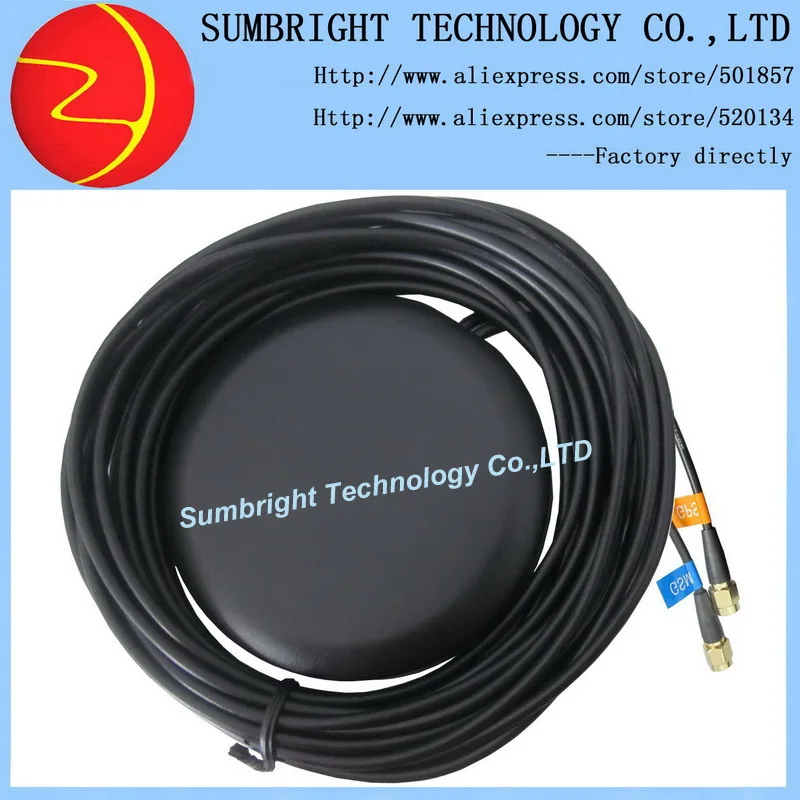

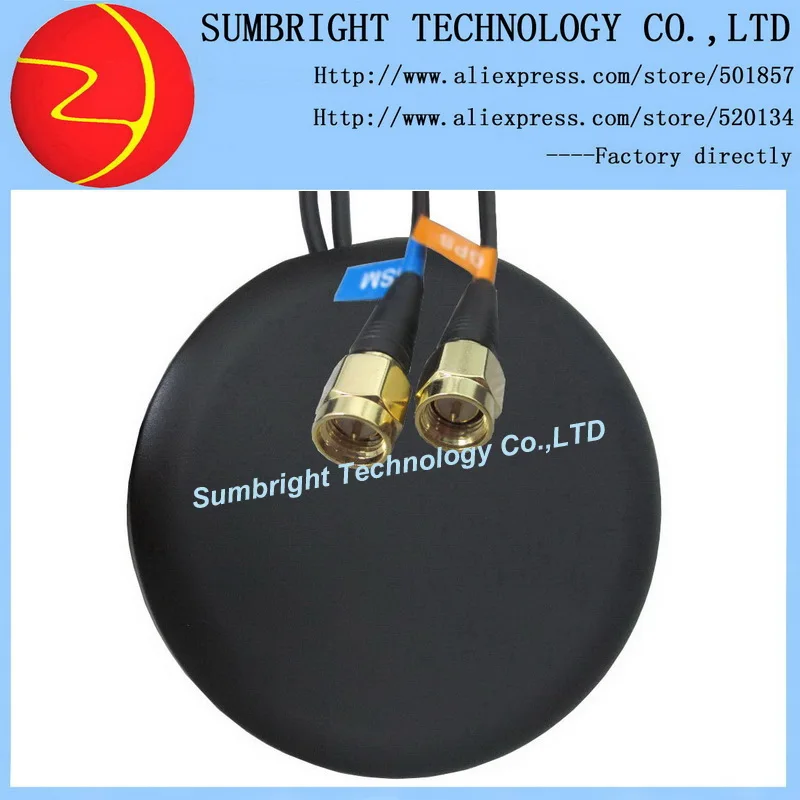

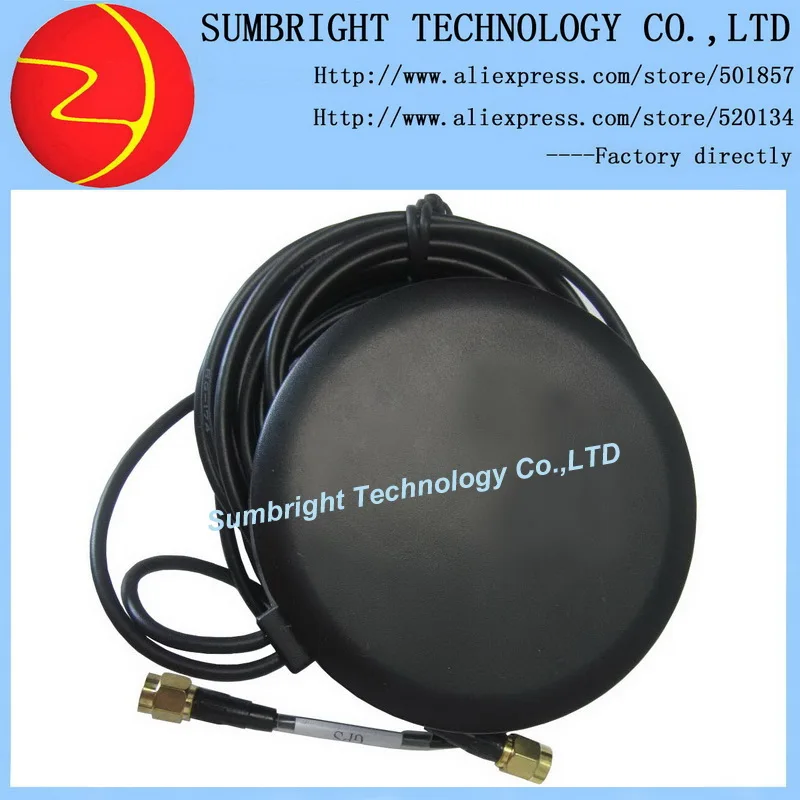

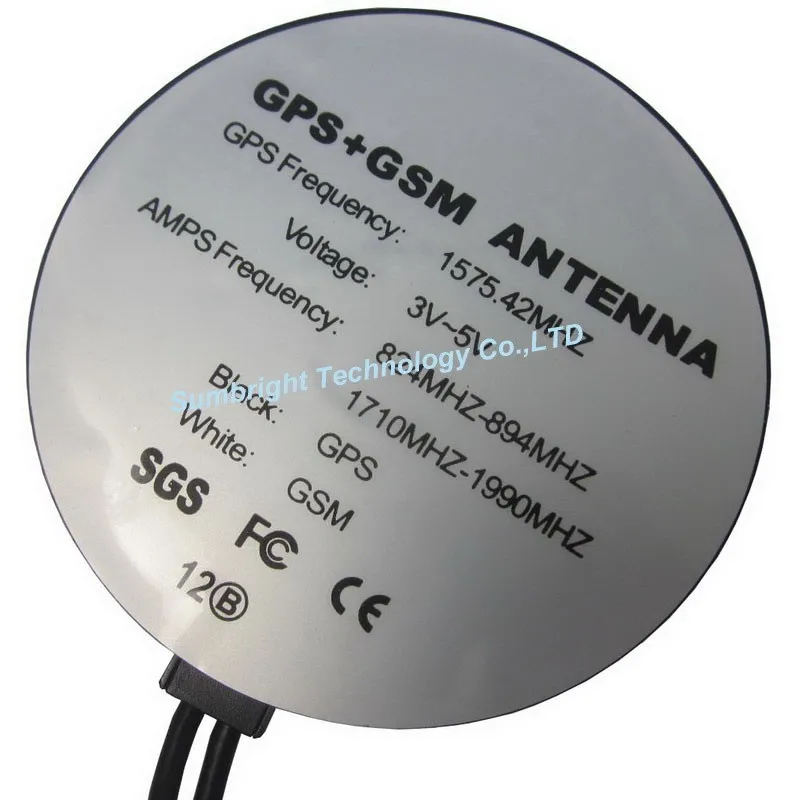

SB-CA200-SMA-3M antenna satellite

Characteristic:

(A).Dielectric antenna

i.GPS part:

Frequency:1575.42+/-3MHz;

Band Width(GPS):+/-5MHz;

V. S. W. R.(in BW)(GPS):1.5:1;

Impendence:50ohm;

Polarization:RHCP;

LNA Gain(without cable):28+/-3dBi;

Noise Figure:1.5dB;

Filter Out Band Attenuation:(f0 =1575.42MHz);

 12dB Min  f0+50MHz

 16dB Min  f0-50MHz

DC Voltage:2.2 to 5V;

DC Current:5 to 15mA;

ii.GSM part:

Frequency:824-960-1800-1900MHz;

V. S. W. R.:2.0:1;

Peak Gain(GSM):3dBi;

Impedance:50ohm;

(B).Mechanical

Weight:160gram;

Size:dia.81.3X14.6mm;

Cable:RG174/3M;

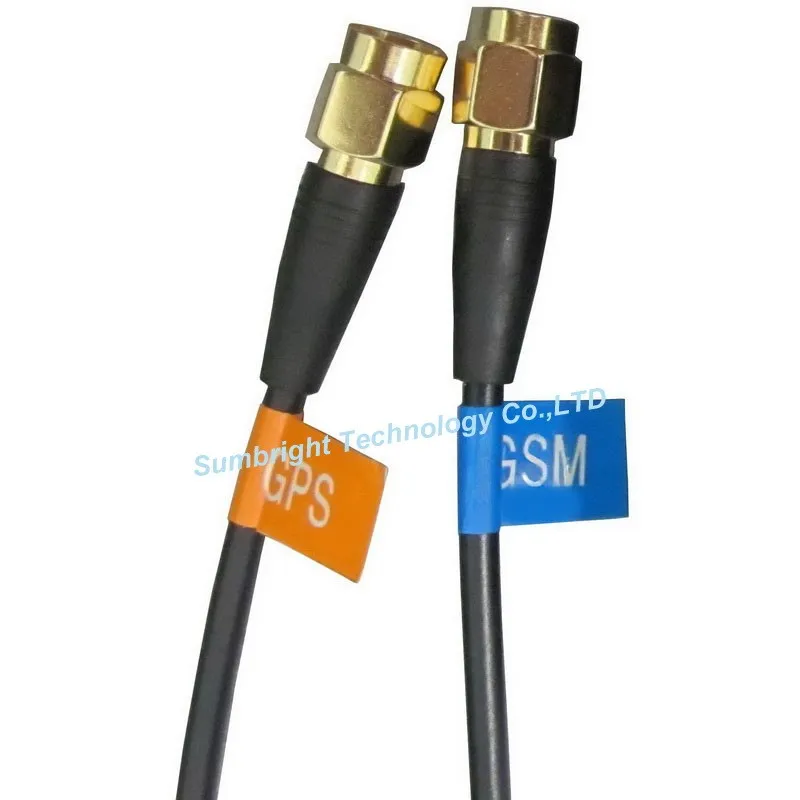

Connector:male SMA straight ;

Mounting:Magnetic;

Housing:Black;

Package:PE bag;

Certificate:FCC, SGS, CE;

(C).Environmental

Working Temp:-40degreeC~+85degreeC;

Storage Temp:-45degreeC~+100degreeC;

Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis

Relative Humidity:95% non-condensing;

Weatherproof:100%waterproof;
